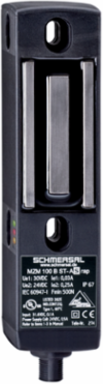

Schmersal 101209553 MZM 100 ST-AS REMAP Safety Switch with Integrated AS-Interface, 40 mm Width
- MPN: 101209553
- PPN: SCM-101209553
CAD
$1417.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
MZM 100 ST-AS REMAP Safety Switch with Integrated AS-Interface, 40 mm Width
Features
- Power to lock
- Guard locking monitored
- Permanent magnet
- Solenoid interlock
- Thermoplastic enclosure
- Integrated AS-Interface
- 40 mm x 179 mm x 40 mm
- Solenoid interlocks with innovating and unique operating principle
- Electronic contact-free, coded system
- 3 LEDs to show operating conditions
- Automatic latching

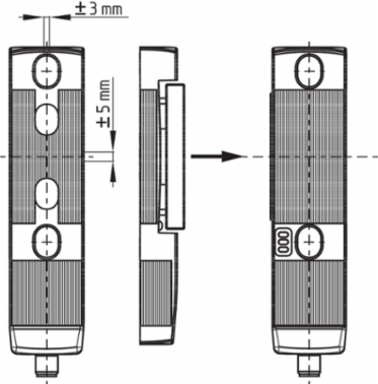

- Sensor technology permits an offset between actuator and interlock of ± 5 mm vertically and ± 3 mm horizontally
- Intelligent diagnosis
Documentation & Downloads
Specifications
Electrical data
| Time to readiness, maximum | 4,000 ms |
|---|
Electrical data - AS-Interface specification
| AS-i Specification | Safety-Slave |
|---|---|
| AS-i Profile | S-7.B.F.E |
| AS-i, ID-Code | 0xB |
| AS-i, ID-Code2 | 0xE |
| AS-i Input, Channel 2 | Data bits DI 2 / DI 3 = dynamic code transmission |
| AS-i Outputs, DO 1 | For the variable setting of the latching force |
| AS-i Outputs, DO 3 | For the variable setting of the latching force |
| AS-i Parameter bits, P1 | Solenoid interlock locked |
| AS-i Parameter bits, P3 | Device error (fault detected) |
| AS-i Input module address | 0 |
| AS-i Version | V 2.1 |
|---|---|
| AS-i, IO-Code | 0x7 |
| AS-i, ID-Code1 | 0xF |
| AS-i Input, Channel 1 | Data bits DI 0 / DI 1 = dynamic code transmission |
| AS-i Outputs, DO 0 | Solenoid control |
| AS-i Outputs, DO 2 | For the variable setting of the latching force |
| AS-i Parameter bits, P0 | Actuator in |
| AS-i Parameter bits, P2 | Auxiliary voltage in |
| Note (AS-i Parameter bits) | Set the parameter outputs to "1111" (0xF) |
| Note (AS-i Input module address) | Preset to address 0, can be changed through AS-interface bus master or hand-held programming device |
Note
| Note (General) | Interlocks with the power to lock principle may only be used in special cases after a thorough evaluation of the accident risk, since the guarding device can immediately be opened on failure of the electrical power supply or when the main switch is opened. | As long as the actuating unit remains inserted in the solenoid interlock, the unlocked safety guard can be relocked. In this case, the safety outputs are re-enabled, so that the safety guard must not be opened. |
|---|

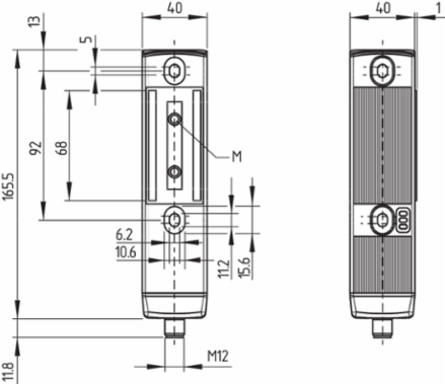

Mechanical data - Dimensions
| Length of sensor | 40 mm |
|---|---|
| Height of sensor | 179 mm |
| Width of sensor | 40 mm |
|---|
Pin assignment
| PIN 1 | AS-i + |
|---|---|
| PIN 3 | AS-Interface - |
| PIN 2 | Aux - (P) |
|---|---|
| PIN 4 | Aux + (P) |
Ambient conditions - Insulation values
| Rated insulation voltage U | 32 VDC |
|---|---|
| Overvoltage category | III |
| Rated impulse withstand voltage U | 0.8 kV |
|---|---|
| Degree of pollution | 3 |
Scope of delivery
| Scope of delivery | Actuator must be ordered separately. |
|---|
Electrical data - Magnet control
| Magnet switch-on time | 100 % |
|---|
General data - Features
| Power to lock | Yes |
|---|---|
| Latching | Yes |
| Integral system diagnostics, status | Yes |
| Solenoid interlock monitored | Yes |
|---|---|
| Safety functions | Yes |
General data
| Standards | EN IEC 62026-2 | EN ISO 13849-1 | EN ISO 14119 | EN IEC 60947-5-3 | EN IEC 61508 |
|---|---|
| Coding level according to EN ISO 14119 | Low |
| Enclosure material | Glass-fibre, reinforced thermoplastic |
| Reaction time, maximum | 150 ms |
| Coding | Universal coding |
|---|---|
| Working principle | inductive |
| Gross weight | 628 g |
| Duration of risk, maximum | 150 ms |
Safety classification
| Standards | EN IEC 60947-5-3 | EN IEC 61508 |
|---|---|
| Category | 4 |
| Safety Integrity Level (SIL), suitable for applications in | 3 |
| Performance Level, up to | e |
|---|---|
| PFH value | 5.00 x 10⁻⁹ /h |
| Mission time | 20 Year(s) |
Electrical data - AS Interface
| Rated operating voltage | 26.5 ... 31.6 VDC (Protection against polarity reversal) |
|---|
| AS-i Current consumption, maximum | 100 mA |
|---|
Ambient conditions
| Degree of protection | IP67 |
|---|---|
| Storage and transport temperature, minimum | -25 °C |
| Relative humidity, minimum | 30 % |
| Note (Relative humidity) | non-condensing | non-icing |
| Restistance to shock | 30 g / 11 ms |
| Ambient temperature | -25 ... +55 °C |
|---|---|
| Storage and transport temperature, maximum | +85 °C |
| Relative humidity, maximum | 95 % |
| Resistance to vibrations | 10 … 150 Hz, amplitude 0.35 mm |
| Protection class | III |
Mechanical data - Connection technique
| Termination | Connector plug M12, 4-pole, (A-coding) |
|---|
Mechanical data
| Mechanical life, minimum | 1,000,000 Operations |
|---|---|
| Holding force, typically | 750 N |
| Latching force, minimum | 30 N |
| Note (Mechanical life) | Actuating speed ≤ 0.5 m/s | Operations for door weights ≤ 5 kg |
|---|---|
| Holding force, guaranteed | 500 N |
| Latching force, maximum | 100 N |
Accessory
| Recommendation (actuator) | MZM 100-B1.1 |
|---|
Approvals - Standards
| Certificates | TÜV | cULus | ASi-SaW | UKCA |
|---|
Electrical data - Auxiliary voltage
| Operating voltage | 24 VDC -15 % / +10 % (stabilised PELV power supply) |
|---|---|
| Rated operating voltage | 24 VDC |
| Current consumption | 600 mA |
|---|
Status indication
| Note (LED switching conditions display) | (1) LED green-red (AS-i Duo LED): Supply voltage / Communication error / Slave address = 0 | (2) LED yellow: Device condition | (3) LED red: Internal device error |
|---|
