Schmersal 103015816 Safety Switch with RFID Technology, 40 mm Width, Thermoplastic Enclosure
- MPN: 103015816
- PPN: SCM-103015816
CAD
$799.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Safety Switch with RFID Technology, 40 mm Width, Thermoplastic Enclosure
Features
- Thermoplastic enclosure
- RFID-technology for needs-based protection against tampering
- Max. length of the sensor chain 200 m
- Self-monitoring series-wiring
- 3 LEDs to show operating conditions
- Sensor technology permits an offset between actuator and interlock of ± 5 mm vertically and ± 3 mm horizontally
- Suitable for hinged and sliding guards
- Intelligent diagnosis
Documentation & Downloads
Specifications
Electrical data - Safety digital inputs
- Designation, Safety inputs
- X1 and X2
- Current consumption at 24 V
- 5 mA
- Test pulse interval, minimum
- 100 ms
- Classification ZVEI CB24I, Source
- C1 | C2 | C3
Switching thresholds−3 V … 5 V (Low) | 15 V … 30 V (High)
Test pulse duration, maximum1 ms
Classification ZVEI CB24I, SinkC1
Electrical data
- Operating voltage
- 24 VDC -15 % / +10 %
- Rated operating voltage
- 24 VDC
- Required rated short-circuit current
- 100 A
- Time to readiness, maximum
- 4,000 ms
No-load supply current I50 mA
Operating current700 mA
External wire and device fuse rating2 A gG
Switching frequency, maximum1 Hz

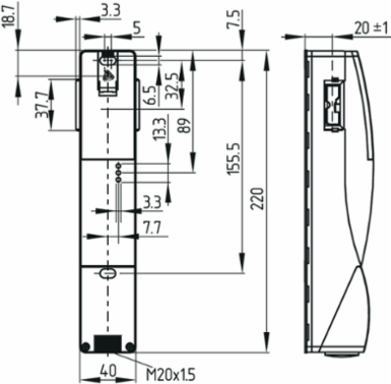

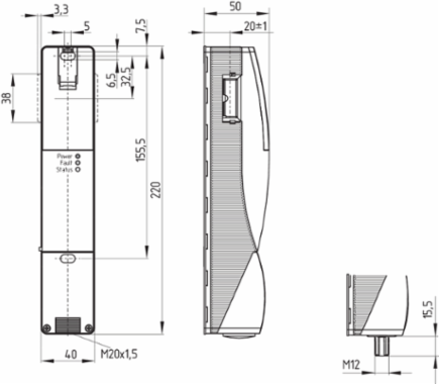

Mechanical data - Dimensions
- Length of sensor
- 50 mm
- Height of sensor
- 220 mm
Width of sensor40 mm
Pin assignment
- PIN 1
- A1 Supply voltage UB
- PIN 3
- A2 GND
- PIN 5
- OUT Diagnostic output
- PIN 7
- Y2 Safety output 2
PIN 2X1 Safety input 1
PIN 4Y1 Safety output 1
PIN 6X2 Safety input 2
PIN 8n.c.
Ambient conditions - Insulation values
- Rated insulation voltage U
- 32 VDC
- Overvoltage category
- III
Rated impulse withstand voltage U0.8 kV
Degree of pollution3
Scope of delivery
- Scope of delivery
- Actuator must be ordered separately.
General data - Features
- Short circuit detection
- Yes
- Series-wiring
- Yes
- Integral system diagnostics, status
- Yes
Cross-circuit detectionYes
Safety functionsYes
Number of safety contacts2
General data
- Standards
- EN ISO 13849-1 | EN ISO 14119 | EN IEC 60947-5-3 | EN IEC 61508
- Coding level according to EN ISO 14119
- Low
- Transmitter output RFID, maximum
- -6 dB/m
- Gross weight
- 410 g
- Reaction time, switching off safety outputs via actuator, maximum
- 100 ms
CodingUniversal coding
Working principleRFID, 125 kHz
Enclosure materialGlass-fibre, reinforced thermoplastic
Duration of risk, maximum200 ms
Reaction time, switching off safety outputs via safety inputs, maximum0.5 ms
Safety classification
- Standards
- EN ISO 13849-1 | EN IEC 61508
- Category
- 4
- PFD value
- 1.60 x 10⁻⁴
- Mission time
- 20 Year(s)
Performance Level, up toe
PFH value1.90 x 10⁻⁹ /h
Safety Integrity Level (SIL), suitable for applications in3
Electrical data - Safety digital outputs
- Designation, Safety outputs
- Y1 and Y2
- Design of control elements
- short-circuit proof, p-type
- Leakage current I
- 0.5 mA
- Current, Utilisation category DC-13
- 0.25 A
- Test pulse duration, maximum
- 0.5 ms
- Classification ZVEI CB24I, Sink
- C1 | C2
Rated operating current (safety outputs)250 mA
Voltage drop U4 V
Voltage, Utilisation category DC-1324 VDC
Test pulse interval, typical1000 ms
Classification ZVEI CB24I, SourceC2
Ambient conditions
- Degree of protection
- IP67 | IP66
- Storage and transport temperature, minimum
- -25 °C
- Relative humidity, maximum
- 93 %
- Resistance to vibrations
- 10 … 150 Hz, amplitude 0.35 mm
- Protection class
- III
Ambient temperature-25 ... +70 °C
Storage and transport temperature, maximum+85 °C
Note (Relative humidity)non-condensing | non-icing
Restistance to shock30 g / 11 ms
Permissible installation altitude above sea level, maximum2,000 m
Mechanical data - Connection technique
- Termination
- Connector M12, 8-pole
- Note (length of the sensor chain)
- Cable length and cross-section change the voltage drop dependiing on the output current
Length of sensor chain, maximum200 m
Note (series-wiring)Unlimited number of devices, oberserve external line fusing, max. 31 devices in case of serial diagnostic SD
Electrical data - Diagnostic outputs
- Designation, Diagnostic outputs
- OUT
- Design of control elements
- short-circuit proof, p-type
- Voltage, Utilisation category DC-13
- 24 VDC
Operating current50 mA
Voltage drop U4 V
Current, Utilisation category DC-130.05 A
Mechanical data - Switching distances according EN IEC 60947-5-3
- Assured switching distance "ON" S
- 4 mm
Assured switching distance "OFF" S30 mm
Mechanical data
- Mechanical life, minimum
- 1,000,000 Operations
- Repeat accuracy R
- 0.5 mm
- Actuating speed, maximum
- 0.2 m/s
- Tightening torque of the fastening screws for the housing cover, minimum
- 0.7 Nm
- Note
- Torx T10
Hysteresis (Switching distance), maximum1.5 mm
Latching force30 N
Type of the fixing screws2x M6
Tightening torque of the fastening screws for the housing cover, maximum1 Nm
Accessory
- Recommendation (actuator)
- AZ/AZM201-B1 | AZ/AZM201-B30
Approvals - Standards
- Certificates
- TÜV | cULus | FCC | IC
Status indication
- Note (LED switching conditions display)
- Operating condition: LED green | Error / functional defect: LED red | Supply voltage UB: LED green
