Wiegmann SC101204G N1 Screw-Cover 10X12X4 Carbon Steel - Galvanized
- MPN: SC101204G
- UPC: 786725317752
- PPN: HBL-SC101204G
- UNSPSC: 39121324
CAD
$100.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

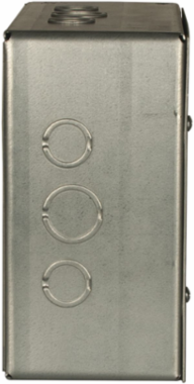

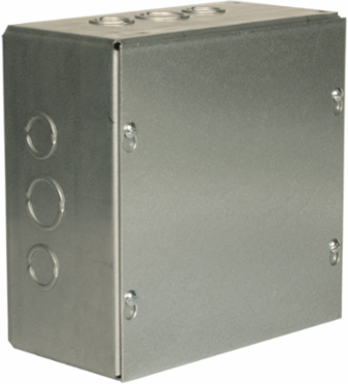

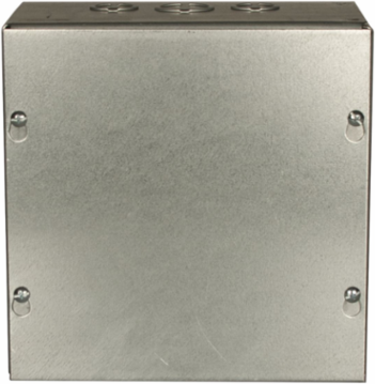

N1 Screw-Cover 10X12X4 Carbon Steel - Galvanized
Features

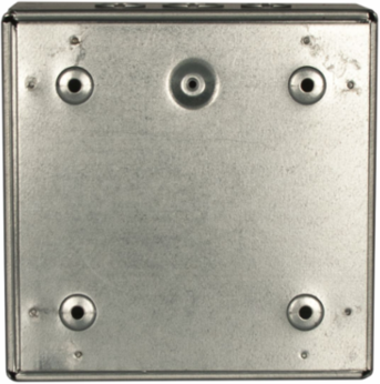

- Fabricated from 16 gauge G-90 pre-galvanized steel. Flat, removable covers fastened with plated steel screws. Cover design permits easy removal without extracting cover screws. Mounting holes on back of box. Removable concentric knockouts on all four sides.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Actual Height
- 12.25 in
- Application
- Designed for use as a junction box and pull box in commercial and general industrial applications. Flush covers must be ordered separately for flush mount applications.
- Cover Type
- Screw Cover
- Depth
- 4 in
- Height
- 12 in
- NEMA Rating
- 1
- Type
- Enclosure
- Weight
- 7.8 lb.
- Knockouts
- Yes
- Nema Rating
- 1
- Class Code
- P01
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Sub Class Code
- P01P018
- Construction
- Spot Welded
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 7.800 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 5 EA
- Pallet Length
- 40.000 in
- Pallet Width
- 48.000 in
Actual Depth4.188 in
Actual Width10.125 in
Cable EntryKnock Outs
Cubic Capacity480 cu.in
FinishGalvanized
MountingEmbossed Mounting Holes
StandardcULus
Width10 in
Finish TypeGalvanized
Mounting TypeEmbossed Mounting Holes
ARRA CompliantContact Manufacturer
Description - InvoiceSC,PULL BOX,GALV,10X12X4)
Harmonization Code7326908688
Lead Time21 wk
Order Multiple1 EA
Stock IndicatorS - Shelf Stock
UL ListedYes
MaterialCarbon Steel
BOX SIZE5.550x13.250x12.750 (in)
Carton - Number of Sub Packs5
Carton - SCC-14 Next Lower Level Sub Pack00786725317752
Pallet Height48.900 in
Pallet Weight673.200 lb.
NAICS Code3359326101
Certifications
- Buy American Compliant
- Contact Manufacturer
- EU RoHS Indicator
- Yes
Certified ListedcULus
ListingsUL, CSA
