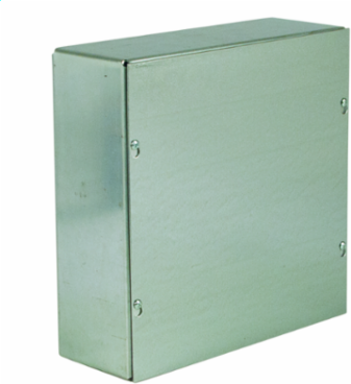

Wiegmann SC243006GNK N1 Screw-Cover - No Knockouts 24X30X6 Carbon Steel - Galvanized
Wiegmann SC243006GNK N1 Screw-Cover - No Knockouts 24X30X6 Carbon Steel - Galvanized
- MPN: SC243006GNK
- UPC: 786725847099
- PPN: HBL-SC243006GNK
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$519.80/ EA
Description
N1 Screw-Cover - No Knockouts 24X30X6 Carbon Steel - Galvanized
Features
- Fabricated from 14 gauge G-90 pre-galvanized steel. Flat, removable covers fastened with plated steel screws. Cover design permits easy removal without extracting cover screws. Mounting holes on back of box.
Specifications
Specifications
- Actual Height
- 30.125 in
- Buy American Compliant
- Contact Manufacturer
- Each - Width
- 24.000 in
- Cover Type
- Screw Cover
- Depth
- 6 in
- Height
- 30 in
- NEMA Rating
- 1
- Type
- Enclosure
- Weight
- 55 lb.
- Knockouts
- No
- Nema Rating
- 1
- Class Code
- P01
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Sub Class Code
- P01P007
- Construction
- Tack Welded
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 55.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 1
Actual Width24.125 in
Country of OriginUS
ApplicationDesigned for use as a junction box and pull box in commercial and general industrial applications. Flush covers must be ordered separately for flush mount applications.
Cubic Capacity4320 cu.in
FinishGalvanized
MountingEmbossed Mounting Holes
StandardcULus
Width24 in
Finish TypeGalvanized
Mounting TypeEmbossed Mounting Holes
ARRA CompliantContact Manufacturer
Description - InvoiceSC,PULL BOX,GALV,NK,24X30X6
Harmonization Code7326908688
Lead Time21 wk
Order Multiple1 EA
Stock IndicatorS - Shelf Stock
UL ListedYes
MaterialCarbon Steel
BOX SIZE30.000x6.000x24.000 (in)
Carton - Number of Sub Packs1
Carton - SCC-14 Next Lower Level Sub Pack00786725847099
Certifications
- Certified Listed
- cULus
- Listings
- UL, CSA
EU RoHS IndicatorYes
