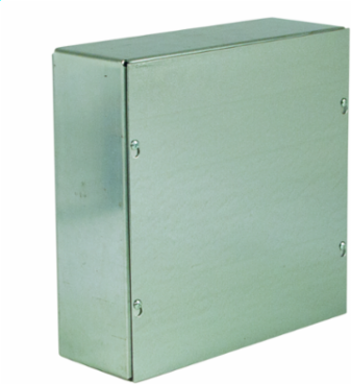

Wiegmann SC060606GNK N1 Screw-Cover - No Knockouts 6X6X6 Carbon Steel - Galvanized
Wiegmann SC060606GNK N1 Screw-Cover - No Knockouts 6X6X6 Carbon Steel - Galvanized
- MPN: SC060606GNK
- UPC: 786725316465
- PPN: HBL-SC060606GNK
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$53.35/ EA
Description
N1 Screw-Cover - No Knockouts 6X6X6 Carbon Steel - Galvanized
Features
- Fabricated from 16 gauge G-90 pre-galvanized steel. Flat, removable covers fastened with plated steel screws. Cover design permits easy removal without extracting cover screws. Mounting holes on back of box.
Specifications
Specifications
- Actual Height
- 6.125 in
- Buy American Compliant
- No
- Each - Width
- 6.650 in
- Cover Type
- Screw Cover
- Depth
- 6 in
- Height
- 6 in
- NEMA Rating
- 1
- Type
- Enclosure
- Weight
- 4.2 lb.
- Knockouts
- No
- Nema Rating
- 1
- Class Code
- P01
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Sub Class Code
- P01P018
- Construction
- Spot Welded
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 4.200 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 5 EA
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Actual Width6.125 in
Country of OriginMX
ApplicationDesigned for use as a junction box and pull box in commercial and general industrial applications. Flush covers must be ordered separately for flush mount applications.
Cubic Capacity216 cu.in
FinishGalvanized
MountingEmbossed Mounting Holes
StandardcULus
Width6 in
Finish TypeGalvanized
Mounting TypeEmbossed Mounting Holes
ARRA CompliantContact Manufacturer
Description - InvoiceSC,PULL BOX,GALV,NK,6X6X6
Harmonization Code7326908688
Lead Time21 wk
Order Multiple1 EA
Stock IndicatorS - Shelf Stock
UL ListedYes
MaterialCarbon Steel
BOX SIZE7.500x7.100x6.650 (in)
Carton - Number of Sub Packs5
Carton - SCC-14 Next Lower Level Sub Pack00786725316465
Pallet Height34.500 in
Pallet Weight688.680 lb.
Certifications
- Certified Listed
- cULus
- Listings
- UL, CSA
EU RoHS IndicatorYes
