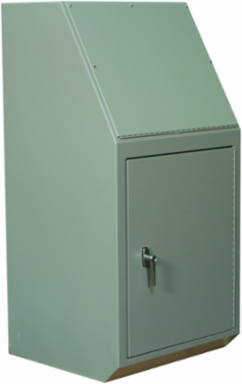

Wiegmann WC936B N12 Console Body 48X36X18 Carbon Steel - Gray
- MPN: WC936B
- UPC: 786725441853
- PPN: HBL-WC936B
- UNSPSC: 39121323
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
N12 Console Body 48X36X18 Carbon Steel - Gray
Features
- Designed to house electrical and electronic controls, instruments and components
- Heavy duty construction provides protection from dirt, dust, oil and water
- Sloping front control panel provides an ideal surface for mounting pushbuttons, pilot lights, meters and switches
- Interior components can be mounted on panels located on the sides and back of the enclosure (panels are optional).
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|---|
| Application | Designed to house electrical and electronic controls, instruments, and components. Heavy duty construction provides protection from dirt, dust, oil, and water. Sloping front control panel provides an ideal surface for mounting pushbuttons, pilot lights, m |
| Cubic Capacity | 31104 cu.in |
| Finish | Polyester Powder |
| Mounting | Mounting Collar Studs |
| Standard | cULus |
| Width | 36 in |
| Finish Type | Polyester Powder |
| Nema Rating | 12 |
| Class Code | P02 |
| Freight Class Code | 06111001 |
| Image Actual Or Representative | R |
| MSDS Flag | No |
| Returnable Indicator | Yes |
| Sub Class Code | P02P036 |
| Latches Type | 3-Point Keylocking Handle |
| Construction | Continuously Welded Seams |
| Series | WC9 Series |
| BOX SIZE | 72.000x38.000x22.000 (in) |
| Carton - Number of Sub Packs | 1 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00786725441853 |
| Pallet Height | 76.500 in |
| Pallet Weight | 417.000 lb. |
| NAICS Code | 3359326101 |
| Actual Height | 48.130 in |
|---|---|
| Color | Ansi-61 Gray Textured |
| Depth | 18 in |
| Height | 48 in |
| NEMA Rating | 12 |
| Type | Console Body |
| Weight | 186 lb. |
| Mounting Type | Mounting Collar Studs |
| ARRA Compliant | Contact Manufacturer |
| Description - Invoice | CONSOLE,OT,CS,BODY,48"X36"18" |
| Harmonization Code | 7326908688 |
| Lead Time | 21 wk |
| Order Multiple | 1 EA |
| Stock Indicator | S - Shelf Stock |
| Buy America(n) Qualified | Contact Manufacturer |
| UL Listed | Yes |
| Material | Carbon Steel |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 186.000 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 1 EA |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
Certifications
| Buy American Compliant | Contact Manufacturer |
|---|---|
| Listings | UL, CSA |
| Certified Listed | cULus |
|---|
