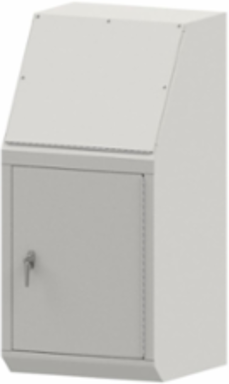

Wiegmann WC1436B N12 Console Body 50 Inch x 36 Inch x 23 Inch Carbon Steel, NEMA 12, 235 lb.
- MPN: WC1436B
- UPC: 786725444007
- PPN: HBL-WC1436B
- UNSPSC: 39121323
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
N12 Single Door Console Body 50X36X23 Carbon Steel - Gray
Features
- Designed to hold electrical and electronic controls and instruments
- Pushbuttons, pilot lights, meters, switches etc., can be mounted on the instrument panel
- Interior components are motorized on stationary sub panels, swing-out sub panels or relay rack angles (panels are optional)
- Heavy duty construction provides protection from dirt, dust, oil and water
- Numerous accessories and variable combinations make these consoles most versatile.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|---|
| Actual Height | 50.130 in |
| Number of Doors (Fixed) | 1 |
| Color | Ansi-61 Gray Textured |
| Cubic Capacity | 41400 cu.in |
| Finish | Polyester Powder |
| NEMA Rating | 12 |
| Type | Console Body |
| Weight | 235 lb. |
| Nema Rating | 12 |
| Class Code | P02 |
| Freight Class Code | 06111001 |
| Image Actual Or Representative | R |
| MSDS Flag | No |
| Returnable Indicator | Yes |
| Sub Class Code | P02P036 |
| Latches Type | 3-Point Keylocking Handle |
| Construction | Continuously Welded Seams |
| Series | WC14 Series |
| BOX SIZE | 50.130x23.130x36.130 (in) |
| Carton - Number of Sub Packs | 1 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00786725444007 |
| NAICS Code | 3359326101 |
| Actual Depth | 23.13 in |
|---|---|
| Actual Width | 36.13 in |
| Application | Designed to hold electrical and electronic controls and instruments. Pushbuttons, pilot lights, meters, switches, etc., can be mounted on the instrument panel. Interior components are motorized on stationary sub panels, swing-out sub panels, or relay rack |
| Cover Type | Door |
| Depth | 23 in |
| Height | 50 in |
| Standard | cULus |
| Width | 36 in |
| Finish Type | Polyester Powder |
| ARRA Compliant | Contact Manufacturer |
| Description - Invoice | CONSOLE,OT,CS,BODY,50"X36"X23" |
| Harmonization Code | 7326908688 |
| Lead Time | 21 wk |
| Order Multiple | 1 EA |
| Stock Indicator | S - Shelf Stock |
| Buy America(n) Qualified | Contact Manufacturer |
| UL Listed | Yes |
| Material | Carbon Steel |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 235.000 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 1 EA |
Certifications
| Buy American Compliant | Contact Manufacturer |
|---|---|
| Listings | UL, CSA |
| Certified Listed | cULus |
|---|
