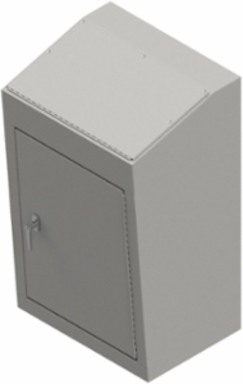

Wiegmann WC10B N12 Single Door Console Body 40X24X17 Carbon Steel - Gray
- MPN: WC10B
- UPC: 786725443000
- PPN: HBL-WC10B
- UNSPSC: 39121323
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
N12 Single Door Console Body 40X24X17 Carbon Steel - Gray
Features
- Fabricated from carbon steel
- Seams are continuously welded and ground smooth
- Removable back panel is provided with the console.
- The large sloping control panel is hinged along the bottom edge.
- Fabricated from 14 gauge steel. Seams are continuously welded and ground smooth. 3-point keylocking handle is provided on front, main door. Flush main door. Control panels are hinged along bottom edge. Control panels have captive screws which thread into sealed wells. Door stops provided to hold control panel open. Print pocket is provided. Standard closed cell neoprene gasket is provided. Removable back panel is included with enclosure. Ground provisions provided.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|---|
| Actual Width | 24.13 in |
| Application | Designed to hold electrical and electronic controls and instruments. Pushbuttons, pilot lights, meters, switches, etc., can be mounted on sloping control surfaces. Interior components can be mounted on standard back panel and terminal straps. Heavy duty c |
| Cover Type | Door |
| Depth | 17 in |
| Height | 40 in |
| Special Features | Fabricated from 14 gauge steel. Seams are continuously welded and ground smooth. 3-point keylocking handle is provided on front, main door. Flush main door. Control panels are hinged along bottom edge. Control panels have captive screws which thread into sealed wells. Door stops provided to hold control panel open. Print pocket is provided. Standard closed cell neoprene gasket is provided. Removable back panel is included with enclosure. Ground provisions provided. |
| Type | Console Body |
| Weight | 129 lb. |
| Nema Rating | 12 |
| Class Code | P02 |
| Freight Class Code | 06111001 |
| Image Actual Or Representative | R |
| MSDS Flag | No |
| Returnable Indicator | Yes |
| Sub Class Code | P02P036 |
| Latches Type | 3-Point Keylocking Handle |
| Construction | Continuously Welded Seams |
| Series | WC10 Series |
| BOX SIZE | 40.130x17.000x24.130 (in) |
| Carton - Number of Sub Packs | 1 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00786725443000 |
| Pallet Weight | 0.000 lb. |
| Actual Height | 40.130 in |
|---|---|
| Number of Doors (Fixed) | 1 |
| Color | Ansi-61 Gray Textured |
| Cubic Capacity | 16320 cu.in |
| Finish | Polyester Powder |
| NEMA Rating | 12 |
| Standard | cULus |
| Width | 24 in |
| Finish Type | Polyester Powder |
| ARRA Compliant | Contact Manufacturer |
| Description - Invoice | CONSOLE,BODY,40"X24"X17" |
| Harmonization Code | 7326908688 |
| Lead Time | 21 wk |
| Order Multiple | 1 EA |
| Stock Indicator | S - Shelf Stock |
| Buy America(n) Qualified | Contact Manufacturer |
| UL Listed | Yes |
| Material | Carbon Steel |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 129.000 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 1 EA |
| NAICS Code | 3359326101 |
Certifications
| Buy American Compliant | Contact Manufacturer |
|---|---|
| Listings | UL, CSA |
| Certified Listed | cULus |
|---|
