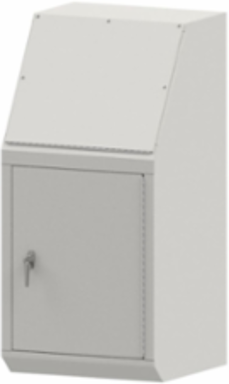

Wiegmann WC14B N12 Single Door Console Body 50 Inch x 24 Inch x 23 Inch Carbon Steel Gray
- MPN: WC14B
- UPC: 786725443604
- PPN: HBL-WC14B
- UNSPSC: 39121323
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
N12 Single Door Console Body 50X24X23 Carbon Steel - Gray
Features
- Designed to hold electrical and electronic controls and instruments
- Pushbuttons, pilot lights, meters, switches etc., can be mounted on the instrument panel
- Interior components are motorized on stationary sub panels, swing-out sub panels or relay rack angles (panels are optional)
- Heavy duty construction provides protection from dirt, dust, oil and water
- Numerous accessories and variable combinations make these consoles most versatile.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Actual Height
- 50.130 in
- Number of Doors (Fixed)
- 1
- Color
- Ansi-61 Gray Textured
- Cubic Capacity
- 27600 cu.in
- Finish
- Polyester Powder
- NEMA Rating
- 12
- Type
- Console Body
- Weight
- 181 lb.
- Nema Rating
- 12
- Class Code
- P02
- Freight Class Code
- 06111001
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Sub Class Code
- P02P036
- UL Listed
- Yes
- Material
- Carbon Steel
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 181.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 1 EA
- Pallet Length
- 72.000 in
- Pallet Width
- 40.000 in
Actual Depth23.13 in
Actual Width24.13 in
ApplicationDesigned to hold electrical and electronic controls and instruments. Pushbuttons, pilot lights, meters, switches, etc., can be mounted on the instrument panel. Interior components are motorized on stationary sub panels, swing-out sub panels, or relay rack
Cover TypeDoor
Depth23 in
Height50 in
StandardcULus
Width24 in
Finish TypePolyester Powder
ARRA CompliantContact Manufacturer
Description - InvoiceCONSOLE,OT,CS,BODY,50"X24"X23"
Harmonization Code7326908688
Lead Time21 wk
Order Multiple1 EA
Stock IndicatorS - Shelf Stock
Latches Type3-Point Keylocking Handle
ConstructionContinuously Welded Seams
SeriesWC14 Series
BOX SIZE26.000x72.000x27.500 (in)
Carton - Number of Sub Packs1
Carton - SCC-14 Next Lower Level Sub Pack00786725443604
Pallet Height30.500 in
Pallet Weight226.000 lb.
NAICS Code3359326101
Certifications
- Buy American Compliant
- Contact Manufacturer
- EU RoHS Indicator
- Yes
Certified ListedcULus
ListingsUL, CSA
