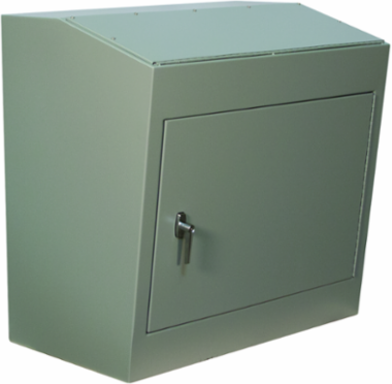

Wiegmann WC12B N12 Consolet Body 36X36X20 Carbon Steel - Gray
- MPN: WC12B
- UPC: 786725443208
- PPN: HBL-WC12B
- UNSPSC: 39121323
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
N12 Consolet Body 36X36X20 Carbon Steel - Gray
Features
- Fabricated from carbon steel
- Seams are continuously welded and ground smooth
- Removable back panel is provided with the console.
- The large sloping control panel is hinged along the bottom edge.
- Bodies and doors fabricated from 14 gauge steel. Seams are continuously welded and ground smooth. 3-point keylocking handle is provided on front, main door. Main hinged doors are flush. Large sloping control panels are hinged along the bottom edge. Control panels have captive screws which thread into sealed wells. Grounding provisions included. Door stops provided to hold control panel open. Print pocket is provided. Closed cell neoprene gasket is provided. Removable back panel included with console. Studs are welded to inside of console for mounting back panel.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Actual Height
- 36.130 in
- Application
- Designed to hold electrical and electronic controls and instruments. Pushbuttons, pilot lights, meters, switches, etc., can be mounted on sloping control surfaces. Interior components can be mounted on standard back panel and terminal straps. Heavy duty c
- Cubic Capacity
- 25920 cu.in
- Finish
- Polyester Powder
- NEMA Rating
- 12
- Standard
- cULus
- Width
- 36 in
- Finish Type
- Polyester Powder
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- CONSOLE,OT,CS,BODY,36"X36"X20"
- Harmonization Code
- 7326908688
- Lead Time
- 21 wk
- Order Multiple
- 1 EA
- Stock Indicator
- S - Shelf Stock
- Latches Type
- 3-Point Keylocking Handle
- Construction
- Continuously Welded Seams
- Series
- WC12 Series
- BOX SIZE
- 36.130x20.130x36.130 (in)
- Carton - Number of Sub Packs
- 1
- Carton - SCC-14 Next Lower Level Sub Pack
- 00786725443208
- Pallet Weight
- 0.000 lb.
Actual Depth20.13 in
Actual Width36.13 in
ColorAnsi-61 Gray Textured
Depth20 in
Height36 in
Special FeaturesBodies and doors fabricated from 14 gauge steel. Seams are continuously welded and ground smooth. 3-point keylocking handle is provided on front, main door. Main hinged doors are flush. Large sloping control panels are hinged along the bottom edge. Control panels have captive screws which thread into sealed wells. Grounding provisions included. Door stops provided to hold control panel open. Print pocket is provided. Closed cell neoprene gasket is provided. Removable back panel included with console. Studs are welded to inside of console for mounting back panel.
TypeConsole Body
Weight184 lb.
Nema Rating12
Class CodeP02
Freight Class Code06111001
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Sub Class CodeP02P036
UL ListedYes
MaterialCarbon Steel
Base Unit of MeasureEA
Carton - Gross Weight per Pack184.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units1 EA
NAICS Code3359326101
Certifications
- Buy American Compliant
- Contact Manufacturer
- Listings
- UL, CSA
Certified ListedcULus
