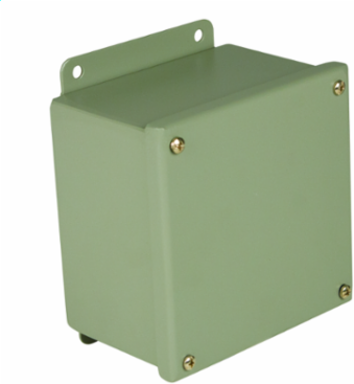

Wiegmann B060403SC N12 JIC Screw-Cover 6X4X3 Carbon Steel - Gray
Wiegmann B060403SC N12 JIC Screw-Cover 6X4X3 Carbon Steel - Gray
- MPN: B060403SC
- UPC: 786725330355
- PPN: HBL-B060403SC
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$158.83/ EA
Description
N12 JIC Screw-Cover 6X4X3 Carbon Steel - Gray
Features
- Bodies and doors fabricated from 14 gauge steel. Continuously welded seams ground smooth, less knockouts of holes. Lids are sealed with closed cell oil resistant neoprene gasket. External mounting plates, top and bottom of enclosure. Weldnuts are provided to secure optional back panel. Captivated cover screws are provided which thread into sealed wells to prevent leakage through cover. Grounding provisions provided.
Specifications
Certifications
- Certified Listed
- cULus
- Listings
- UL, CSA
EU RoHS IndicatorYes
Specifications
- Buy American Compliant
- Contact Manufacturer
- Each - Width
- 6.250 in
- Color
- Ansi-61 Gray Textured
- Cubic Capacity
- 72 cu.in
- Finish
- Textured
- Mounting
- External Mounting Plates
- Standard
- cULus
- Width
- 4 in
- Finish Type
- Textured
- Nema Rating
- 12
- Class Code
- P04
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Sub Class Code
- P04P067
- Construction
- Continuously Welded Seams
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 3.170 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 1 EA
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Country of OriginMX
ApplicationDesigned for use as instrument housings, electrical control enclosures, terminal wiring boxes, or electrical junction boxes. Provides protection from dirt, dust, oil, and water.
Cover TypeScrew Cover
Depth3 in
Height6 in
NEMA Rating12
TypeEnclosure
Weight3.17 lb.
Mounting TypeExternal Mounting Plates
ARRA CompliantContact Manufacturer
Description - InvoiceJIC,CS,SCREW COVER,6X4X3
Harmonization Code7326908688
Lead Time21 wk
Order Multiple1 EA
Stock IndicatorS - Shelf Stock
UL ListedYes
MaterialCarbon Steel
BOX SIZE4.350x7.900x6.250 (in)
Carton - Number of Sub Packs1
Carton - SCC-14 Next Lower Level Sub Pack00786725330355
Pallet Height39.300 in
Pallet Weight913.320 lb.
