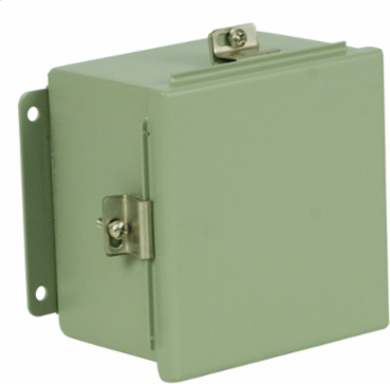

Wiegmann BN4040403 N4 JIC Lift-Off Cover 4X4X3 Carbon Steel - Gray
- MPN: BN4040403
- UPC: 786725377053
- PPN: HBL-BN4040403
- UNSPSC: 39121324
CAD
$167.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
N4 JIC Lift-Off Cover 4X4X3 Carbon Steel - Gray
Features
- Bodies fabricated from 14 gauge and doors fabricated from 16 gauge steel
- Continuously welded seams ground smooth, less knockouts or holes
- Closed cell oil resistant neoprene gasket
- External mounting plates, top and bottom of enclosure
- Stainless steel screws and clamps on four sides of cover to assure water tight seal
- Grounding provisions provided
- Optional back panels and terminal kits must be ordered separately
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Color
- Ansi-61 Gray Textured
- Cubic Capacity
- 64 cu.in
- Finish
- Textured
- Mounting
- External Mounting Plates
- Standard
- cULus;IEC
- Width
- 4 in
- Finish Type
- Textured
- Nema Rating
- 4
- Class Code
- P04
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Sub Class Code
- P04P065
- UL Listed
- Yes
- Material
- Carbon Steel
- BOX SIZE
- 4.450x8.050x6.100 (in)
- Carton - Number of Sub Packs
- 1
- Carton - SCC-14 Next Lower Level Sub Pack
- 00786725377053
- Pallet Height
- 49.000 in
- Pallet Weight
- 730.500 lb.
- NAICS Code
- 3359326101
ApplicationDesigned for use as instrument housings, electrical control enclosures, terminal wiring boxes, or electrical junction boxes. Provides protection where equipment is hosed down, very wet, or in outdoor applications.
Cover TypeLift Off
Depth4 in
Height4 in
NEMA Rating4
TypeEnclosure
Weight2.63 lb.
Mounting TypeExternal Mounting Plates
ARRA CompliantContact Manufacturer
Description - InvoiceNEMA4,JIC,CS,CC,4X4X3
Harmonization Code7326908688
Lead Time21 wk
Order Multiple1 EA
Stock IndicatorS - Shelf Stock
Latches TypeClamps
ConstructionContinuously Welded Seams
Base Unit of MeasureEA
Carton - Gross Weight per Pack2.630 lb.
Carton - Pack DescriptionCarton
Carton - Total Units1 EA
Pallet Length40.000 in
Pallet Width48.000 in
Certifications
- Buy American Compliant
- Contact Manufacturer
- EU RoHS Indicator
- Yes
Certified ListedcULus;IEC
ListingsUL, CSA
