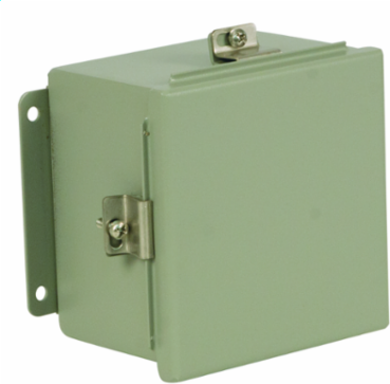

Wiegmann BN4161406 N4 JIC Lift-Off Cover 16X14X6 Carbon Steel - Gray
- MPN: BN4161406
- UPC: 786725377503
- PPN: HBL-BN4161406
- UNSPSC: 39121324
CAD
$555.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
N4 JIC Lift-Off Cover 16X14X6 Carbon Steel - Gray
Features
- Bodies fabricated from 14 gauge and doors fabricated from 16 gauge steel
- Continuously welded seams ground smooth, less knockouts or holes
- Closed cell oil resistant neoprene gasket
- External mounting plates, top and bottom of enclosure
- Weldnuts are provided to secure optional panel
- Stainless steel screws and clamps on four sides of cover to assure water tight seal
- Grounding provisions provided
- Optional back panels and terminal kits must be ordered separately
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Color
- Ansi-61 Gray Textured
- Cubic Capacity
- 3584 cu.in
- Finish
- Textured
- Mounting
- External Mounting Plates
- Standard
- cULus;IEC
- Width
- 14 in
- Engineering Drawing 3 Display Text
- MOD Center Drawings Instructions
- Mounting Type
- External Mounting Plates
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- NEMA4,JIC,CS,CC,16X14X6
- Harmonization Code
- 7326908688
- Lead Time
- 21 wk
- Order Multiple
- 1 EA
- Stock Indicator
- S - Shelf Stock
- Latches Type
- Clamps
- Construction
- Continuously Welded Seams
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 22.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 1 EA
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
ApplicationDesigned for use as instrument housings, electrical control enclosures, terminal wiring boxes, or electrical junction boxes. Provides protection where equipment is hosed down, very wet, or in outdoor applications.
Cover TypeLift Off
Depth16 in
Height16 in
NEMA Rating4
TypeEnclosure
Weight22 lb.
Finish TypeTextured
Nema Rating4
Class CodeP04
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Sub Class CodeP04P065
UL ListedYes
MaterialCarbon Steel
BOX SIZE7.700x19.150x16.300 (in)
Carton - Number of Sub Packs1
Carton - SCC-14 Next Lower Level Sub Pack00786725377503
Pallet Height50.700 in
Pallet Weight451.320 lb.
NAICS Code3359326101
Certifications
- Buy American Compliant
- Contact Manufacturer
- EU RoHS Indicator
- Yes
Certified ListedcULus;IEC
ListingsUL, CSA
