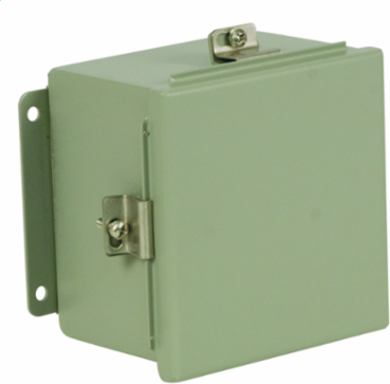

Wiegmann BN4080603 N4 JIC Lift-Off Cover 8X6X3.5 Carbon Steel - Gray
- MPN: BN4080603
- UPC: 786725377305
- PPN: HBL-BN4080603
- UNSPSC: 39121324
CAD
$249.14
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
N4 JIC Lift-Off Cover 8X6X3.5 Carbon Steel - Gray
Features
- Bodies fabricated from 14 gauge and doors fabricated from 16 gauge steel
- Continuously welded seams ground smooth, less knockouts or holes
- Closed cell oil resistant neoprene gasket
- External mounting plates, top and bottom of enclosure
- Weldnuts are provided to secure optional panel
- Stainless steel screws and clamps on four sides of cover to assure water tight seal
- Grounding provisions provided
- Optional back panels and terminal kits must be ordered separately
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|---|
| Color | Ansi-61 Gray Textured |
| Cubic Capacity | 384 cu.in |
| Finish | Textured |
| Mounting | External Mounting Plates |
| Standard | cULus;IEC |
| Width | 6 in |
| Engineering Drawing 3 Display Text | MOD Center Drawings Instructions |
| Mounting Type | External Mounting Plates |
| ARRA Compliant | Contact Manufacturer |
| Description - Invoice | NEMA4,JIC,CS,CC,8X6X3.5 |
| Harmonization Code | 7326908688 |
| Lead Time | 21 wk |
| Order Multiple | 1 EA |
| Stock Indicator | S - Shelf Stock |
| Buy America(n) Qualified | Contact Manufacturer |
| UL Listed | Yes |
| Material | Carbon Steel |
| BOX SIZE | 4.900x10.900x7.700 (in) |
| Carton - Number of Sub Packs | 1 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00786725377305 |
| Pallet Height | 48.600 in |
| Pallet Weight | 863.100 lb. |
| NAICS Code | 3359326101 |
| Application | Designed for use as instrument housings, electrical control enclosures, terminal wiring boxes, or electrical junction boxes. Provides protection where equipment is hosed down, very wet, or in outdoor applications. |
|---|---|
| Cover Type | Lift Off |
| Depth | 8 in |
| Height | 8 in |
| NEMA Rating | 4 |
| Type | Enclosure |
| Weight | 5.6 lb. |
| Finish Type | Textured |
| Nema Rating | 4 |
| Class Code | P04 |
| Freight Class Code | 06316009 |
| Image Actual Or Representative | R |
| MSDS Flag | No |
| Returnable Indicator | Yes |
| Sub Class Code | P04P065 |
| Latches Type | Clamps |
| Construction | Continuously Welded Seams |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 5.600 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 1 EA |
| Pallet Length | 40.000 in |
| Pallet Width | 48.000 in |
Certifications
| Buy American Compliant | Contact Manufacturer |
|---|---|
| Listings | UL, CSA |
| Certified Listed | cULus;IEC |
|---|
