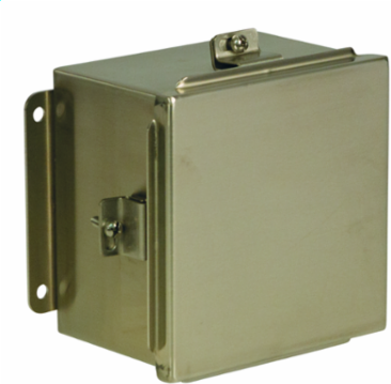

Wiegmann BN4100804SS N4X JIC Lift-Off Cover 10X8X4 304 Stainless Steel
Wiegmann BN4100804SS N4X JIC Lift-Off Cover 10X8X4 304 Stainless Steel
- MPN: BN4100804SS
- UPC: 786725378937
- PPN: HBL-BN4100804SS
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$907.03/ EA
Description
N4X JIC Lift-Off Cover 10X8X4 304 Stainless Steel
Features
- Bodies and doors fabricated from 16 gauge type 304 stainless steel
- Continuously welded seams ground smooth, less knockouts or holes
- Sealed with poured-in-place polyurethane gasket
- External mounting plates, top and bottom of enclosure
- Weldnuts are provided to secure optional panel
- Stainless steel screws and clamps on four sides of cover assure watertight seal
- Grounding provisions provided
- Optional panels and terminal kits must be ordered separately
Specifications
Specifications
- Country of Origin
- Mexico
- Application
- Provides unmatched protection for housing electrical components in highly corrosive environments. This enclosure is used in indoor and outdoor settings that are frequently wet or have constant exposure to water, other liquids, or contaminants.
- Cubic Capacity
- 320 cu.in
- Height
- 10 in
- NEMA Rating
- 4X
- Type
- Enclosure
- Weight
- 9 lb.
- Knockouts
- No
- Nema Rating
- 4X
- Class Code
- P03
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Sub Class Code
- P03P052
- UL Listed
- Yes
- Material
- Stainless Steel
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 9.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 1 EA
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Number of Doors (Fixed)1
Cover TypeLift Off
Depth4 in
MountingExternal Mounting Plates
StandardcULus;IEC
Width8 in
Engineering Drawing 3 Display TextMOD Center Drawings Instructions
Mounting TypeExternal Mounting Plates
ARRA CompliantContact Manufacturer
Description - InvoiceNEMA4X,JIC,SS,CC,10X8X4
Harmonization Code7326908688
Lead Time21 wk
Order Multiple1 EA
Stock IndicatorS - Shelf Stock
Latches TypeClamps
ConstructionContinuously Welded Seams
SeriesBN4-SS Series
BOX SIZE5.200x13.150x13.700 (in)
Carton - Number of Sub Packs1
Carton - SCC-14 Next Lower Level Sub Pack00786725378937
Pallet Height40.900 in
Pallet Weight508.050 lb.
Certifications
- Buy American Compliant
- Contact Manufacturer
- EU RoHS Indicator
- No
Certified ListedcULus;IEC
ListingsUL, CSA
