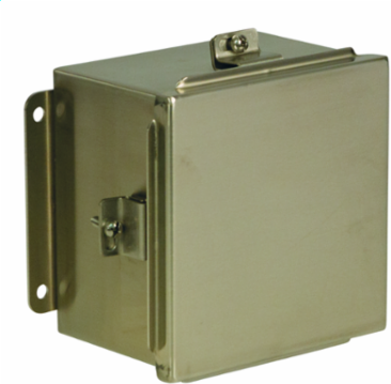

Wiegmann BN4080604SS N4X JIC Lift-Off Cover 8X6X4 304 Stainless Steel
- MPN: BN4080604SS
- UPC: 786725378913
- PPN: HBL-BN4080604SS
- UNSPSC: 39121324
CAD
$785.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
N4X JIC Lift-Off Cover 8X6X4 304 Stainless Steel
Features
- Bodies and doors fabricated from 16 gauge type 304 stainless steel
- Continuously welded seams ground smooth, less knockouts or holes
- Sealed with poured-in-place polyurethane gasket
- External mounting plates, top and bottom of enclosure
- Weldnuts are provided to secure optional panel
- Stainless steel screws and clamps on four sides of cover assure watertight seal
- Grounding provisions provided
- Optional panels and terminal kits must be ordered separately
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|---|
| Application | Provides unmatched protection for housing electrical components in highly corrosive environments. This enclosure is used in indoor and outdoor settings that are frequently wet or have constant exposure to water, other liquids, or contaminants. |
| Cubic Capacity | 192 cu.in |
| Height | 8 in |
| NEMA Rating | 4X |
| Type | Enclosure |
| Weight | 4 lb. |
| Knockouts | No |
| Nema Rating | 4X |
| Class Code | P03 |
| Freight Class Code | 06316009 |
| Image Actual Or Representative | R |
| MSDS Flag | No |
| Returnable Indicator | Yes |
| Sub Class Code | P03P052 |
| Latches Type | Clamps |
| Construction | Continuously Welded Seams |
| Series | BN4-SS Series |
| BOX SIZE | 5.650x10.350x8.250 (in) |
| Carton - Number of Sub Packs | 1 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00786725378913 |
| Pallet Height | 49.700 in |
| Pallet Weight | 696.520 lb. |
| NAICS Code | 3359326101 |
| Number of Doors (Fixed) | 1 |
|---|---|
| Cover Type | Lift Off |
| Depth | 4 in |
| Mounting | External Mounting Plates |
| Standard | cULus;IEC |
| Width | 6 in |
| Engineering Drawing 3 Display Text | MOD Center Drawings Instructions |
| Mounting Type | External Mounting Plates |
| ARRA Compliant | Contact Manufacturer |
| Description - Invoice | NEMA4X,JIC,SS,CC,8X6X4 |
| Harmonization Code | 7326908688 |
| Lead Time | 21 wk |
| Order Multiple | 1 EA |
| Stock Indicator | S - Shelf Stock |
| Buy America(n) Qualified | Contact Manufacturer |
| UL Listed | Yes |
| Material | Stainless Steel |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 4.000 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 1 EA |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
Certifications
| Buy American Compliant | Contact Manufacturer |
|---|---|
| Listings | UL, CSA |
| Certified Listed | cULus;IEC |
|---|
