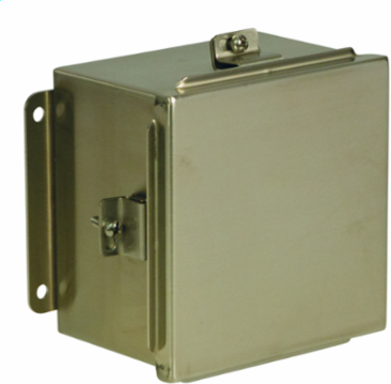

Wiegmann BN4040403SS N4X JIC Lift-Off Cover 4X4X3 304 Stainless Steel
- MPN: BN4040403SS
- UPC: 786725378852
- PPN: HBL-BN4040403SS
- UNSPSC: 39121324
CAD
$440.26
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Stainless Steel N4X JIC Enclosure, 4X4X3, 304
Features
- Bodies and doors made from 16 gauge type 304 stainless steel
- Continuously welded seams ground smooth, without knockouts or holes
- Sealed with poured-in-place polyurethane gasket
- External mounting plates located at the top and bottom of the enclosure
- Stainless steel screws and clamps on all four sides ensure a watertight seal
- Grounding provisions included
- Optional panels and terminal kits available separately.
- This stainless steel enclosure features a robust, watertight design with seamless construction and a polyurethane gasket, ideal for harsh environments.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Application
- Provides unmatched protection for housing electrical components in highly corrosive environments. This enclosure is used in indoor and outdoor settings that are frequently wet or have constant exposure to water, other liquids, or contaminants.
- Cubic Capacity
- 48 cu.in
- Height
- 4 in
- NEMA Rating
- 4X
- Standard
- cULus;IEC
- Width
- 4 in
- Knockouts
- No
- Nema Rating
- 4X
- Class Code
- P03
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Sub Class Code
- P03P052
- UL Listed
- Yes
- Material
- Stainless Steel
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 2.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 1 EA
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Number of Doors (Fixed)1
Cover TypeLift Off
Depth3 in
MountingExternal Mounting Plates
Special FeaturesThis stainless steel enclosure features a robust, watertight design with seamless construction and a polyurethane gasket, ideal for harsh environments.
TypeEnclosure
Weight2 lb.
Mounting TypeExternal Mounting Plates
ARRA CompliantContact Manufacturer
Description - InvoiceNEMA4X,JIC,SS,CC,4X4X3
Harmonization Code7326908688
Lead Time21 wk
Order Multiple1 EA
Stock IndicatorS - Shelf Stock
Latches TypeClamps
ConstructionContinuously Welded Seams
SeriesBN4-SS Series
BOX SIZE4.700x7.200x6.200 (in)
Carton - Number of Sub Packs1
Carton - SCC-14 Next Lower Level Sub Pack00786725378852
Pallet Height37.400 in
Pallet Weight642.240 lb.
NAICS Code3359326101
Certifications
- Buy American Compliant
- Contact Manufacturer
- EU RoHS Indicator
- No
Certified ListedcULus;IEC
ListingsUL, CSA
