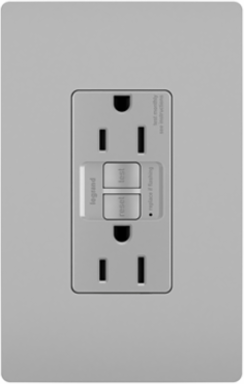

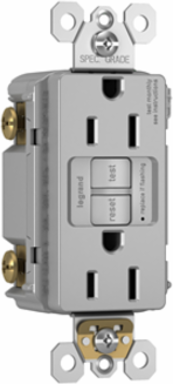

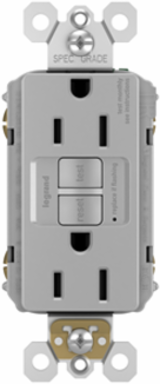

Pass & Seymour 1597TRNAGRY Tamper-Resistant 15A Self-Test Duplex GFCI, Gray, UL498, 125V
Pass & Seymour 1597TRNAGRY Tamper-Resistant 15A Self-Test Duplex GFCI, Gray, UL498, 125V
- MPN: 1597TRNAGRY
- PPN: P-S-1597TRNAGRY
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$47.69/ EA
Description
Conducts an automatic test every three seconds, ensuring it's always ready to protect. If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced. It also has our proven SafeLock™ Protection feature: if critical components are damaged and protection is lost, power to the receptacle is disconnected.For detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page.For detailed GFCI receptacle information, visit our GFCI Headquarters.
Features
- NAFTA-Compliant GFCI Receptacles are ideal for use on projects subject to the provisions of the Buy American Act.
- Protects children: patented shutter system helps prevent improper insertion of foreign objects (for Tamper-Resistant models).
- Meets National Electrical Code® Tamper-Resistant requirements (for Tamper-Resistant models).
- Conducts an automatic test every three seconds, ensuring it's always ready to protect. If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced. It also has our proven SafeLock protection feature: if critical components are damaged and protection is lost, power to the receptacle is disconnected.
- Thinner than competitors' GFCI Receptacles: leaves more room for wires in the box.
- Auto-Ground clip assures a positive ground to metal box.
- Meets 2015 UL requirements.
- Feed-thru wiring configuration allows GFCI to protect downstream receptacles.
- Prevents line-load reversal miswire: no power to the face or downstream receptacles if wired incorrectly.
- Exceeds UL 943 voltage surge requirements; survives 100x the required UL 3kA/6kV voltage surge test cycles.
- FSUL Listed (Federal Specification WC596).
- WR models listed to the Weather-Resistant supplement of UL498, meet demanding UL requirements.
- Trip indicator light (red LED).
- Side or internal screw-pressure-plate back wire with #10-#14 AWG solid or stranded copper wire.
- Two back-wire holes per terminal.
- Ground screw has back-wire clamp for easy installation.
- 10kA short circuit rating.
- Mounting screws are shipped captive in the device and wall plate for easier installation.
- High-impact-resistant thermoplastic construction.
- Extra-long strap.
- Button colors match the device face.
- Dual-direction test and reset buttons.
- Class A rated GFCI.
- Supplied with matching TP wall plate (except NI, AB, and DB models).
- Supply Voltage: 125VAC, 60 Hz
- Supply Voltage Range: 102-132 VAC
- Trip Threshold: 5 +/- 1 m
- Trip Time: 0.025 sec., nominal per UL Standard
- 20 Amp feed-thru capacity
Specifications
Technical Information
- Amps
- 15A
- Volts
- 125
NEMA Configuration Number5-15R
Buy American Act Compliance
- Country Of Origin
- MEXICO
General Info
- Color
- Gray
Listing Agencies/Third Party Certifications
- RoHS
- Yes
- cULus
- Yes
- UL Standard
- UL498
CSA ListedNo
Federal SpecYes
