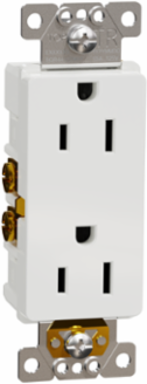

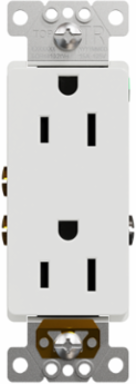

Square D SQR44102WH X Series 15A 125V Tamper Resistant Duplex Decorator Receptacle Side Wire Clamps Matte White 10 Pack
Square D SQR44102WH X Series 15A 125V Tamper Resistant Duplex Decorator Receptacle Side Wire Clamps Matte White 10 Pack
- MPN: SQR44102WH
- UPC: 785901539568
- PPN: SCH-SQR44102WH
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$2.40/ EA
Description

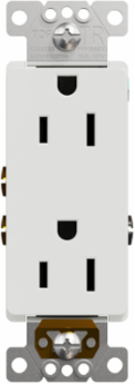

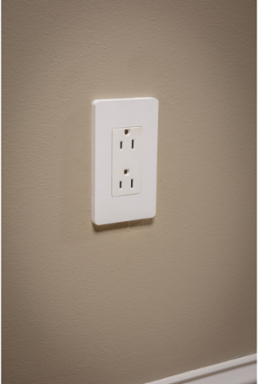

X Series residential wiring devices socket receptacle featuring an array of new features, such as flush mounting, easy installation, and connectivity. This outlet socket has a 15A current rating. The rated operational voltage of this device is 120 VAC. Each outlet socket unit has two outlet sockets and is used to supply power. Each outlet socket has two poles and a ground. The connection terminals of this outlet socket are push-in termination and screw terminal. Its matching mounting box can be recessed into the surface of the wall for flush mounting. This receptacle is tamper resistant with discrete black shutters. This socket outlet has a white frame. The self-grounding feature is a brass ground contact which provides ground retention to metal boxes that eliminates the need to use a ground screw. This socket has a width of 1.42 in (36 mm), a height of 4.06 in (103 mm) and a depth of 1.06 (27 mm). By satisfying the NEMA 5-15R, UL 498 standards, this socket outlet is cULus certified. X Series normalizes an array of new features, such as flush facing, easy installations, and connectivity, establishing a new benchmark for residential wiring devices.
Specifications
Environment
- Product Certifications
- cULus
StandardsUL 498 || NEMA 5-15R
Contractual warranty
- Warranty
- 2 years
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2011022_V1
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Circularity Profile
- ENVEOLI2011022_V1
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationPro-active China RoHS declaration (out of China RoHS legal scope)
Eu Rohs DirectiveCompliant
Complementary
- Network Frequency
- 60 Hz
- Number Of Modules
- 1
- Number Of Gangs
- 1 gang
- Surface Finish
- matt
- Mounting Mode
- by screws
- Colour
- white
- Material
- plastic: strap || metal: fixing frame
- Width
- 36 mm
- [Ue] Rated Operational Voltage
- 125 V
Height103 mm

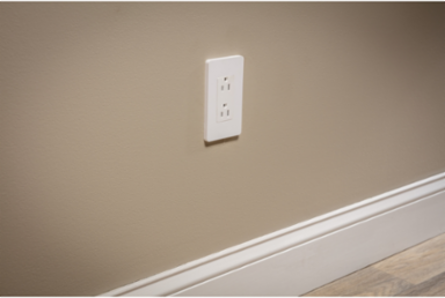

Device Mountingflush
Network TypeAC

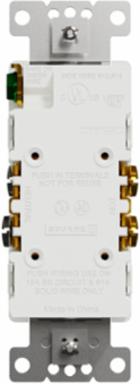

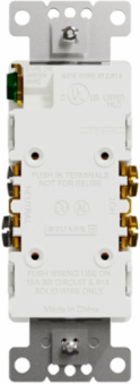

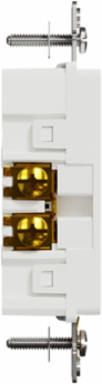

Connections - Terminalsphase and neutral 4 screw terminal AWG 14...AWG 12) copper || phase and neutral 4 push-in termination AWG 14), solid copper || earth 1 screw terminal copper
[Ie] Rated Operational Current Ac15 A
Earth Circuitself earthing
Quantity Per Set10 pieces
Depth27 mm
Specifications
- Socket Number
- 2
- Product Or Component Type
- socket-outlet
- Range
- Square D X Series
- Body Type
- decorator
- Device Application
- power supply
Aesthetic NameX Series
Socket Additional Informationtamper resistant
Device Presentationmechanism with fixing frame
Outlet StandardNEMA
Outlet Poles Configuration2P + E
