X Series 15A 125V Tamper Resistant Duplex Receptacle 30 Pack, White
X Series 15A 125V Tamper Resistant Duplex Receptacle 30 Pack, White
X Series 15A 125V Tamper Resistant Duplex Receptacle 30 Pack, White
Square D

Square D SQR44103WH X Series 15A 125V Tamper Resistant Duplex Receptacle 30 Pack, White

  • MPN: SQR44103WH
  • UPC: 785901539650
  • PPN: SCH-SQR44103WH

CAD

$2.40

/ EA

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Company Stock:

0

Loading dialog...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

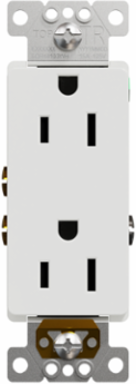

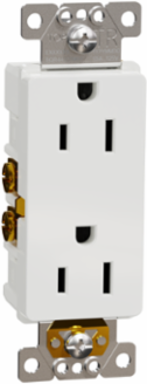

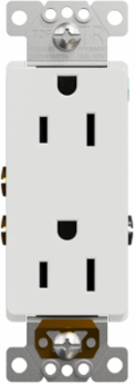

X Series residential wiring devices socket receptacle featuring an array of new features, such as flush mounting, easy installation, and connectivity. This outlet socket has a 15A current rating. The rated operational voltage of this device is 120 VAC. Each outlet socket unit has two outlet sockets and is used to supply power. Each outlet socket has two poles and a ground. The connection terminals of this outlet socket are push-in termination and screw terminal. Its matching mounting box can be recessed into the surface of the wall for flush mounting. This receptacle is tamper resistant with discrete black shutters. This socket outlet has a white frame. The self-grounding feature is a brass ground contact which provides ground retention to metal boxes that eliminates the need to use a ground screw. This socket has a width of 1.42 in (36 mm), a height of 4.06 in (103 mm) and a depth of 1.06 (27 mm). By satisfying the NEMA 5-15R, UL 498 standards, this socket outlet is cULus certified. X Series normalizes an array of new features, such as flush facing, easy installations, and connectivity, establishing a new benchmark for residential wiring devices.

Features

  • Built with integrated safety shutters that block the insertion of foreign objects like paperclips or keys, this receptacle meets mandatory National Electrical Code (NEC) requirements for child safety. The internal mechanism only opens when a standard two-prong or three-prong plug is inserted simultaneously, providing passive, 24/7 protection against accidental electrical shocks without the need for unsightly plastic outlet caps.

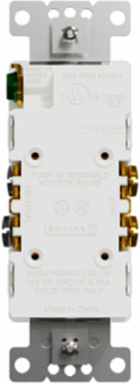

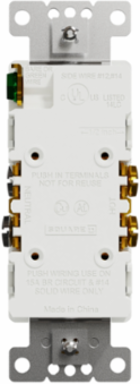

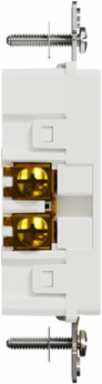

  • Engineered for maximum contractor efficiency, this device offers both traditional side-wire terminals and SpeedWire push-in connections for #14 AWG solid copper wire. This dual-termination flexibility allows for rapid, secure wiring in deep or shallow electrical boxes, significantly cutting down installation time for DIY homeowners and professional electricians alike.

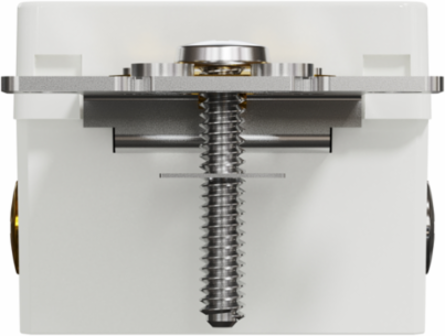

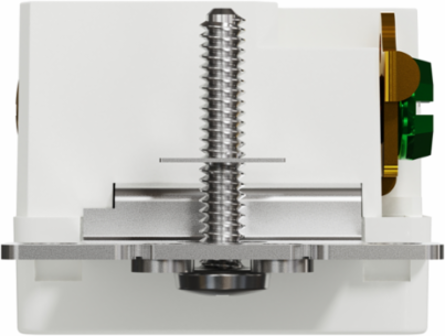

  • Equipped with a heavy-duty self-grounding brass clip, this receptacle automatically establishes a ground connection when installed into a properly grounded metal junction box. This feature ensures a reliable path to ground for sensitive electronics and power tools while reducing the complexity of your wiring, making it an ideal choice for both new construction and modernizing older electrical systems.

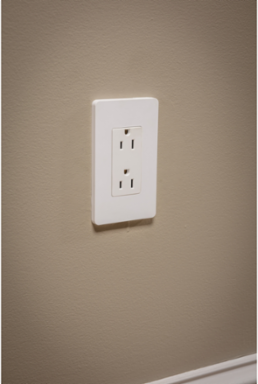

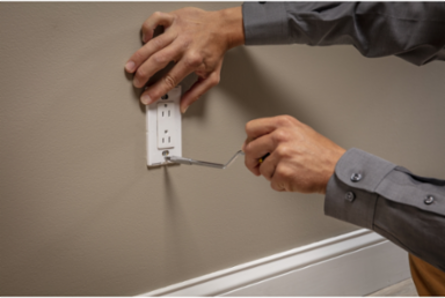

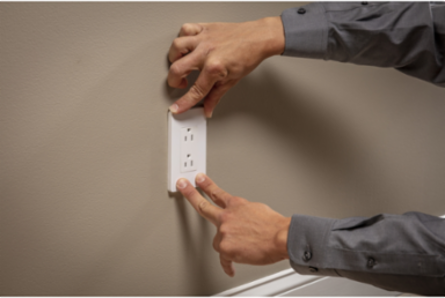

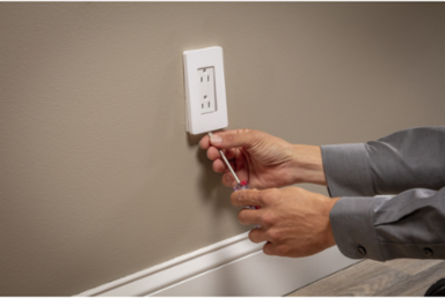

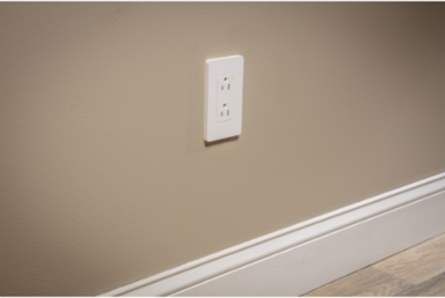

  • Part of the sleek Schneider Electric X Series, this high-quality duplex receptacle features a contemporary matte white finish that resists fingerprints and blends seamlessly with minimalist design trends. The flush-mount profile and "snap-on" wall plate compatibility (sold separately) provide a high-end, screwless aesthetic that elevates the look of any residential kitchen, bedroom, or living space.

Documentation & Downloads

Specifications

Additional

Voltage
125 V
Outlet Poles Configuration
2P + E
Outlet Standard
NEMA 5-15R
Device Mounting
Flush
Connections - Terminals
Phase and neutral 4 screw terminal AWG 14–AWG 12 copper, phase and neutral 4 push-in termination AWG 14 solid copper, earth 1 screw terminal copper
Width
36 mm (1.42 in)
Depth
27 mm (1.06 in)
Earth Circuit
Self earthing (brass ground contact)
Product Certifications
cULus
Reach Free Of Svhc
Yes
Eu Rohs Directive
Compliant
China Rohs Regulation
Pro-active declaration (out of legal scope)
Aesthetic Name
X Series
Device Presentation
Mechanism with fixing frame
Network Type
AC
Body Type
Decorator
Warranty
2 years
Amperage15 A
Socket Number2
Network Frequency60 Hz
Mounting ModeBy screws
Socket Additional InformationTamper resistant
Height103 mm (4.06 in)
MaterialPlastic strap, metal fixing frame
Surface FinishMatte
StandardsUL 498, NEMA 5-15R
Toxic Heavy Metal FreeYes
Mercury FreeYes
Country of OriginChina
Number Of Gangs1 gang
Device ApplicationPower supply
Number Of Modules1
RangeSquare D X Series
