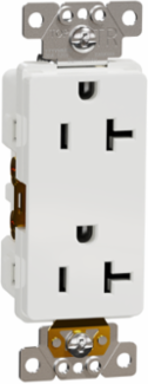

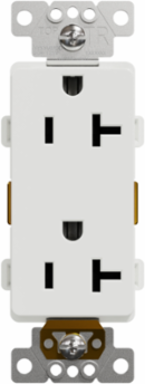

Square D SQR44203WH X Series 20A 125V Tamper Resistant Duplex Receptacle 30 Pack, White
Square D SQR44203WH X Series 20A 125V Tamper Resistant Duplex Receptacle 30 Pack, White
- MPN: SQR44203WH
- UPC: 785901544098
- PPN: SCH-SQR44203WH
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$4.85/ EA
Description
X Series residential wiring devices socket receptacle featuring an array of new features, such as flush mounting, easy installation, and connectivity. This outlet socket has a 20A current rating. The rated operational voltage of this device is 120VAC. Each outlet socket unit has two outlet sockets and is used to supply power. Each outlet socket has two poles and a ground. The connection terminals of this outlet socket are push-in termination and screw terminal. Its matching mounting box can be recessed into the surface of the wall for flush mounting. This receptacle is tamper resistant with discrete black shutters. This socket outlet has a white frame. The self-grounding feature is a brass ground contact which provides ground retention to metal boxes that eliminates the need to use a ground screw. This socket has a width of 1.54in (39mm), a height of 4.06in (103mm) and a depth of 1.22in (31mm). By satisfying the NEMA 5-20R, UL 498 standards, this socket outlet is cULus certified. X Series normalizes an array of new features, such as flush facing, easy installations, and connectivity, establishing a new benchmark for residential wiring devices.
Features
- Built with integrated shutter mechanisms that block the insertion of foreign objects, this 20A duplex receptacle provides permanent, automatic protection against accidental electrical shocks. This critical safety feature ensures full compliance with NEC® requirements for residential dwellings, giving homeowners peace of mind without the need for unsightly plastic outlet caps.
- Rated for a full 20 Amps at 125V, this commercial-grade outlet is engineered to support power-hungry devices such as air fryers, space heaters, and professional power tools without overheating. The high-conductivity brass contacts ensure a cool, secure connection, preventing the voltage drops and thermal damage often associated with standard 15A residential-grade hardware.

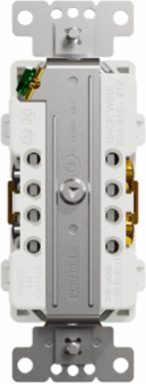

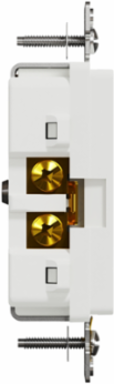

- Featuring both traditional side-wire terminals and screw-pressure back-wire clamps, this receptacle offers maximum flexibility for rapid, professional-grade termination. The back-wire feature is especially valuable for electricians working with thick #12 AWG wire, as it provides a more secure, vibration-resistant connection than standard "push-in" ports while significantly reducing installation time in multi-gang boxes.
- Constructed from premium, UV-stabilized polycarbonate in a clean white finish, this device is designed to resist cracking, chipping, and fading over years of heavy use. The rugged matte finish hides fingerprints and scuffs, making it the ideal aesthetic and functional choice for both modern residential interiors and demanding commercial environments like schools or offices.
- Equipped with a heavy-duty brass self-grounding clip, this outlet automatically establishes a secure ground connection directly to the metal junction box upon installation. This specialized feature ensures a low-impedance ground path for maximum safety, simplifying the wiring process for contractors and ensuring a reliable electrical bond even if the ground wire becomes loose.
Specifications
- Amperage
- 20 A
- Socket Number
- 2
- Outlet Standard
- NEMA 5-20R
- Earth Circuit
- Self earthing (brass ground contact)
- Width
- 39 mm (1.54 in)
- Depth
- 31 mm (1.22 in)
- Material
- Plastic (strap), Metal (fixing frame)
- Standards
- UL 498, NEMA 5-20R
- Network Frequency
- 60 Hz
- Warranty
- 2 years
- China RoHS Regulation
- Pro-active declaration (out of China RoHS legal scope)
- Mercury Free
- Yes
- Network Type
- AC
- Body Type
- Decorator
- Number of Gangs
- 1 gang
- Device Presentation
- Mechanism with fixing frame
- Aesthetic Name
- X Series
Voltage125 V
Outlet Poles Configuration2P + E
Connections - TerminalsPhase and neutral 4 screw terminals AWG 12 to AWG 10 copper, Earth 1 screw terminal copper
Mounting ModeFlush by screws
Height103 mm (4.06 in)
Surface FinishMatt
Product CertificationscULus
Country of OriginChina
Socket Additional InformationTamper resistant
EU RoHS DirectiveCompliant
REACH RegulationFree of Substances of Very High Concern
Toxic Heavy Metal FreeYes
Number of Modules1
Device ApplicationPower supply
Circularity ProfileENVEOLI2011022_V1
RangeSquare D X Series
Sustainable Offer StatusGreen Premium product
