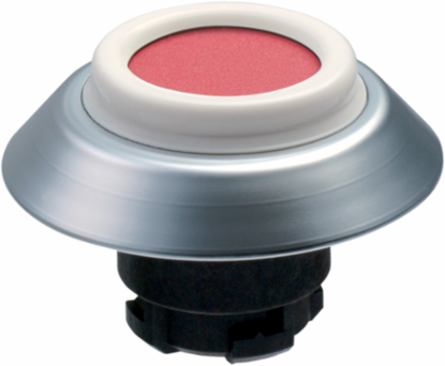

Schmersal 101163555 NDT Pushbutton with 44.5 mm Actuating Head, IP67, 25 g Weight
Schmersal 101163555 NDT Pushbutton with 44.5 mm Actuating Head, IP67, 25 g Weight
- MPN: 101163555
- PPN: SCM-101163555
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$35.86/ EA
Specifications
Electrical data
- Switching frequency
- 1,000 /h
Number of contact elements, maximum3
Mechanical data - Dimensions
- Height
- 11 mm
- Mounting diameter
- 22.3 mm
- Thickness of the front panel, maximum
- 6 mm
diameters for the actuating heads44.5 mm
Thickness, of the front panel, minimum1.5 mm
Spacing50 x 50 mm
General data - Features
- Mounting flange
- Yes
- Fully insulated
- Yes
Probing possibleYes
General data
- Standards
- EN IEC 60947-5-1 | EN IEC 60947-1
- Design
- Tactile
- Sealing type
- Membrane | Lip gaskets
- Material of the front ring
- ABS, chrome-plated
- Colour of the front ring
- Silver
- Gross weight
- 25 g
VersionsPushbutton
Installation conditions (mechanical)arbitrarily
Material of the operatorsABS
Colour of the operating elementRed
Colour of the bellowsWhite
Ambient conditions
- Degree of protection
- IP67 | IP69K
- Resistance to vibrations
- 10 - 150 Hz (0.5 mm / 5 g)
Ambient temperature-25 ... +80 °C
Restistance to shock50 g
Mechanical data
- Unlocking
- without
- Actuating stroke
- 5 mm
- Mounting
- Mounting flange EFM
Mechanical life, minimum1,000,000 Operations
Actuating force, approx.1.5 N
Tightening torque of the screw0.6 Nm
Specifications
- Height
- 11 mm
Approvals - Standards
- Certificates
- BG | cULus | CCC | IPA
