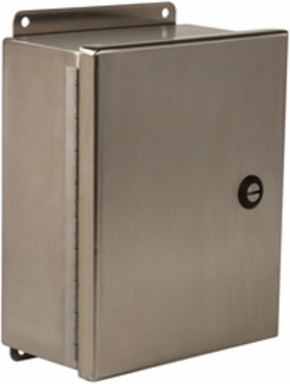

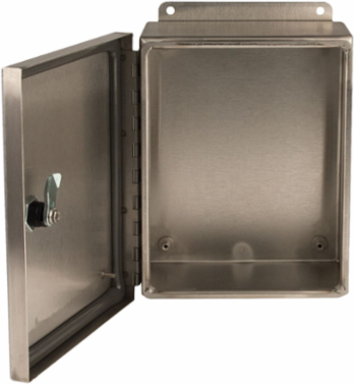

Wiegmann BN4121210CHQTSS NEMA 4 JIC Continuous Hinge Quarter Turn 12X12X10 304 Stainless Steel
- MPN: BN4121210CHQTSS
- UPC: 786725883257
- PPN: HBL-BN4121210CHQTSS
- UNSPSC: 39121324
CAD
$1932.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
NEMA 4 JIC Continuous Hinge Quarter Turn 12X12X10 304 Stainless Steel.
Features
- New 1/4 turn style JIC enclosure makes for easy door seal
- Eliminates the need for exterior clips to secure door shut
- 1/4 turn latch is interchangeable with many locking designs available to better suit the customer
- FTC flange around the entire door opening to channel liquids away
- Available in light grained finish 304 or 316 stainless steel
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Application
- Ultimate Mini-Max™ Series enclosures are designed to house and protect electrical and electronic components from harsh, dirty environments. For use in installations where dirt, dust, oil, water and other contaminants are present. Streamlined styling, 1/4 turn latch and attractive durable finish compliment any high tech electronic equipment.
- Cubic Capacity
- 1440 cu.in
- Height
- 12 in
- NEMA Rating
- 4, 4X, 12
- Type
- Enclosure
- Weight
- 19 lb.
- Knockouts
- No
- Nema Rating
- 4, 4X, 12
- Description - Invoice
- N4X JIC CONT HNGE QTR TRN 12X12X10 304SS
- Harmonization Code
- 7326908688
- Sub Class Code
- P03P052
- UL Listed
- Yes
- Series
- ULTIMATE® MINI-MAX Series
- BOX SIZE
- 12.050x14.875x14.350 (in)
- Carton - Total Units
- 1 EA
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Number of Doors (Fixed)1
Cover TypeHinged Cover
Depth10 in
MountingExternal Mounting Plates
StandardcULus
Width12 in
Engineering Drawing 3 Display TextMOD Center Drawings Instructions
Mounting TypeExternal Mounting Plates
Class CodeP03
Freight Class Code06316009
Image Actual Or RepresentativeR
Latches Type1/4 Turn
MaterialStainless Steel
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00786725883257
Pallet Height40.650 in
Pallet Weight352.215 lb.
NAICS Code3359326101
Certifications
- Certified Listed
- cULus
