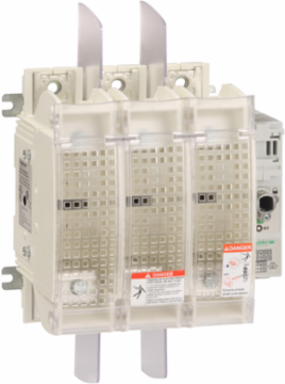

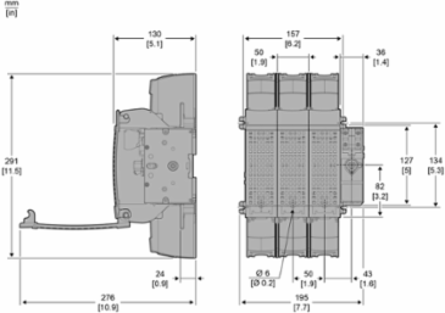

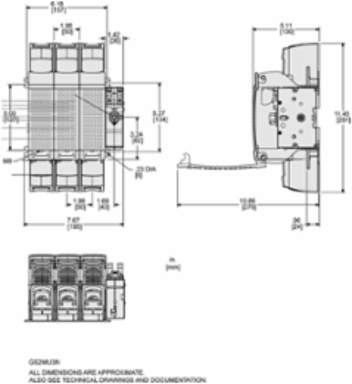

Schneider Electric GS2MU3N TeSys GS Switch Disconnect Fuse 3P 200A Fuse Type UL, Size J

MPN: GS2MU3N
PPN: SCH-GS2MU3N

$1311.28

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

TeSys GS fuse switch-disconnector, 3 poles (3P), 200A/750V, to be used with class J fuse links up to 200A, for motor applications up to 100kW@400V AC-23. To be equipped with an external front side mounting operating handle GS2AH (several models available). Screw terminals to be equipped with upstream and downstream 3P terminal shrouds GS1AP43 (to be ordered separately), it provides high short circuit current rating 200kA@600V. Add-on auxiliary contact modules, front mounting GS1AM (early-break and position signaling), side mounting GS1AN (position signaling) can complete the assembly (to be ordered separately). UL/CSA certified.

Features

Designed specifically to accommodate standard 200-Amp Class J overcurrent protection fuses, this switch-disconnector ensures an exact physical and electrical interface. This specialized design keeps high-voltage motor circuits safely operating within code while completely isolating upstream shorts and minimizing destructive arc-flash energy.
Engineered to withstand high short-circuit currents up to 200 kA, this switch guarantees vital structural stability and maximum personnel safety during a major downstream fault. The high breaking capacity ensures the internal copper alloy mechanics stay completely intact, preventing destructive cabinet explosions and lowering overall system downtime.
Equipped with heavy-duty box lugs designed for high-conductivity copper or aluminum wiring, the GS2MU3N creates an air-tight, low-resistance connection. This architecture eliminates localized overheating and prevents terminal loosening caused by constant machine vibration or severe thermal expansion and contraction cycles.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	France, United States

Depth	130 mm

Physical Attributes

Fuse Size	J

Complementary Attributes

Rated Operational Power In W	100 kW 400 V140 kW 500 V185 kW 690 V

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Network Type	DC, AC
Certificate Agency	UL98, CSA C22.2 No 4
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.7 kg CO2 eq., 0.6731295546558704
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	15 kg CO2 eq., 15.006072874493928
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Serviceability	No
Field Service Division	PPIBS
Weee Applicability	Finished product
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Contacts Type And Composition	3 NO
Device Short Name	GS2MU
Energy Efficiency Optimized	False
Fuse Type	UL
Mounting Support	plate
Number Of Poles	3P
Product Name	TeSys GS
Protected Poles Description	3t
Returnability	Yes
Sustainable Packaging	No
Total Lifecycle Carbon Footprint	464 kg CO2 eq.
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep Code	ENVPEP2003009EN
Pep Verification Date	2020-04-01
Psr Version	PSR-0005-ed2-EN-2016 03 29
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	20
Energy Model - Installation [A5]	Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
Energy Model - End Of Life [C1-c4]	Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
Width Nominal	196.2 mm
[Ie] Rated Operational Current	200 A
[Ui] Rated Insulation Voltage	750 V
Connections - Terminals	power circuit: lugs-ring terminals 16-152 mm²
Nbr. Of Units In Pkg.	1
Take-back	No
Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]	17.65

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market Segmentation	Commercial, Industrial
Poles Description	3P
Carbon Footprint Of The Distribution Phase [A4]	1.843603238866397, 2 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.10289878542510121, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	446 kg CO2 eq., 445.9000000000002
Local Publishable Date	2026-06-30
Stocking Flag	N
Device Type	LV equipment - LV fuse - switch
Traceability	No
Average Life Duration	15 year(s)
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2003009EN
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1911
China Rohs In Scope	No
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Compatibility Code	GS2M
Device Application	protection
Electrical Durability	6000 cycles
Fire Resistance	960 °C body
Mechanical Durability	10000 cycles
Network Frequency	50/60 Hz
Product Availability	Stock - Normally stocked in distribution facility
Product Or Component Type	switch-disconnector-fuse
Range	TeSys
Software Version	EIME v5.8.1
Tightening Torque	power circuit 8.5-8.5 N.m
Type Of Operating Handle	external frontal
Thermal Current 3	200 A
Database Version	2016-11
Pcr Version	PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	Establish, support and interrupt for 20 years rated currents in normal conditions of circuit characterized by the current of 400A, including any conditions specified for overload in operation characterized by the current of 400A, for the operating voltage of 690VAC for the category of use AC-23 A.
Functional-unit Unit	Unit
Energy Model - Manufacturing [A1-a3]	Manufacturing Plant Location: France or Tunisia
Energy Model - Use [B6]	Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
Height Nominal	195 mm
[Icm] Rated Short-circuit Making Capacity	2 kA 400 V
[Ith] Conventional Free Air Thermal Current	200 A (at 40 °C)
[Uimp] Rated Impulse Withstand Voltage	8 kV
Short-circuit Withstand	200 kA
Package Weight(Lbs)	3.530 kg
Warranty (In Months)	18
Customs Code	8536509065

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Ambient Air Temperature For Storage	-40-80 °C, -40-80 °C
Reach Free Shvc	Yes
Toxic Heavy Metal Free	Yes
Carbon Footprint	463.5257044534415
Environmental Disclosure	ENVPEP2003009EN
Ip Degree Of Protection	IP20 IEC 60529 with terminal cover)
Packaging Without Single Use Plastic	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2020-04-01
Psr Version	PSR-0005-ed2-EN-2016 03 29

Ambient Air Temperature For Operation	-20-70 °C, -20-70 °C
Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI2003009EN
Eu Rohs Directive	Compliant
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2003009EN
Pcr Version	PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep	Independent internal review
