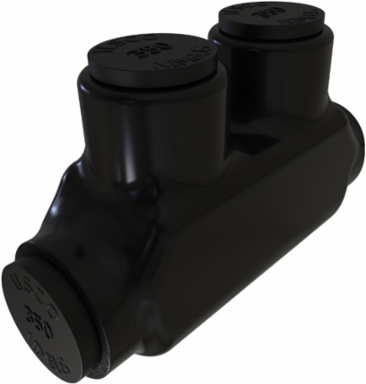

ILSCO PBT-350 Nimbus Insulated Aluminum In-Line Splicer-Reducer Connector, Conductor Range 350-6, 2 Ports, Tin Plated, UL, CSA
- MPN: PBT-350
- UPC: 783669077049
- PPN: ILC-PBT-350
CAD
$126.91
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Nimbus Insulated Aluminum In-Line Splicer-Reducer Connector, Conductor Range 350-6, 2 Ports, Tin Plated, UL, CSA
Documentation & Downloads
Specifications
Key Specifications
- Height
- 2.432 in | 61.7728 mm
- Weight
- 0.51 lbs
Length4.046 in | 102.7684 mm
Width1.312 in | 33.3248 mm
Voltage
- Voltage Rating
- 600 V
Dimensions
- Drive Size Main
- 5/16
- Height BX (IN)
- 3.125
- Length (mm)
- 102.7684
- Max Insulation OD (mm)
- 21.844
- Width BX (IN)
- 3.875
Drive Type MainInternal Hex
Height (mm)61.7728
Max Insulation OD (IN)0.86
Weight BX (LB)1.153
Width (mm)33.3248
Testing Standards
- CSA File Number
- LR-29601
- Prop65 Compliance
- WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- UL / CULUS Specification
- UL 486A/B Listed
CSA StandardC22.2 No. 65-03
UL Control Number453G
UL File NumberE6207
Additional Class Attributes
- Connection
- Mechanical
- Number of Conductors
- 2
- Number of Ports / Wireways
- 2
- Replacement Part(s)
- PORTPLUG-350, SCREWCAP-350
Contains DE-OX®Yes
Number of Poles1
Number of Usable Ports2
Material and Finish
- Conductor Material
- Aluminum, Copper
- Insulation
- Plastisol
- Wire Binding Hardware Finish
- Tin
Connector FinishTin
MaterialAluminum
Wire Binding Hardware MaterialAluminum
Conductor Ranges
- Conductor Range AL Stranded (Primary, run, main, line)
- 350 kcmil - 6 Str
Conductor Range CU Stranded (Primary, run, main, line)350 kcmil - 6 Str
Additional Technical Specifications
- Conductor Type
- Stranded
General
- Bag Quantity
- 1
- Dual Rated
- Yes
- UPC Code
- 78366907704
Carton Quantity DescriptionSTD PACK QTY 2
NEMA CodeS-588-4
Bolt and Screw Sizes
- Number of Wire Binding Screws per Port
- 1
- Wire Binding Torque
- 250 kcmil = 300, 4 - 10 AWG = 100, 1 - 2 AWG = 150, 1/0 - 2/0 AWG = 200, 3/0 - 4/0 AWG = 250, 300 - 350 kcmil = 350
Wire Binding Screw Size11/16
Color
- Cap Color Main
- Black
- Color
- Black
Cap Color TapBlack
Environment and Temperature
- Environmental Conditions
- Cold temperature rated to -45°C
- Temperature Rating
- 90°C
Flammability RatingInsulation rated per UL 94
