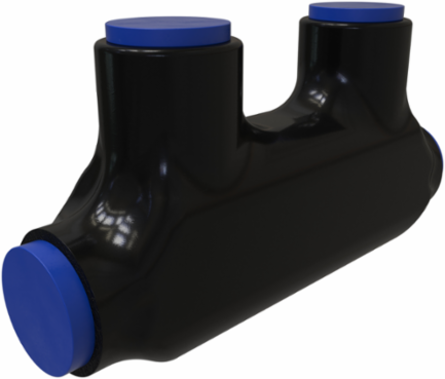

ILSCO PBT-500-F Nimbus Insulated Aluminum In-Line Splicer-Reducer Connector, Conductor Range 500-4, Flex 250-6 H,I,K 4/0-4 M 262.2-4 DLO, 2 Ports, Tin Plated, UL, CSA
- MPN: PBT-500-F
- UPC: 783669723571
- PPN: ILC-PBT-500-F
CAD
$176.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Nimbus Insulated Aluminum In-Line Splicer-Reducer Connector, Conductor Range 500-4, Flex 250-6 H,I,K 4/0-4 M 262.2-4 DLO, 2 Ports, Tin Plated, UL, CSA
Documentation & Downloads
Specifications
Key Specifications
| Weight | 0 lbs |
|---|
Voltage
| Voltage Rating | 600 V |
|---|
Dimensions
| Drive Size Main | 3/8 |
|---|---|
| Height BX (IN) | 3.75 |
| Width BX (IN) | 6 |
| Drive Type Main | Internal Hex |
|---|---|
| Weight BX (LB) | 0 |
Testing Standards
| CSA File Number | LR-29601 |
|---|---|
| Prop65 Compliance | WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov |
| UL / CULUS Specification | UL 486A/B Listed |
| CSA Standard | C22.2 No. 65-03 |
|---|---|
| UL Control Number | 453G |
| UL File Number | E6207 |
Additional Class Attributes
| Connection | Mechanical |
|---|---|
| Number of Conductors | 2 |
| Number of Ports / Wireways | 2 |
| Replacement Part(s) | Cap |
| Contains DE-OX® | Yes |
|---|---|
| Number of Poles | 1 |
| Number of Usable Ports | 2 |
Material and Finish
| Conductor Material | Copper, Aluminum |
|---|---|
| Insulation | Plastisol |
| Wire Binding Hardware Finish | Tin |
| Connector Finish | Tin |
|---|---|
| Material | Aluminum |
| Wire Binding Hardware Material | Aluminum |
Conductor Ranges
| Conductor Range AL Stranded (Primary, run, main, line) | 500 kcmil - 4 Str |
|---|---|
| Flex Conductor Range | 250-6 H,I,K 4/0-4 M 262.2-4 DLO |
| Conductor Range CU Stranded (Primary, run, main, line) | 500 kcmil - 4 Str |
|---|
Additional Technical Specifications
| Connector Amperage Rating AL (Derated where applicable) | 350 Amps |
|---|---|
| Conductor Type | Flex, Stranded |
| Connector Amperage Rating CU (Derated where applicable) | 430 Amps |
|---|
General
| Bag Quantity | 1 |
|---|---|
| Dual Rated | Yes |
| UPC Code | 78366972357 |
| Carton Quantity Description | STD PACK QTY 2 |
|---|---|
| NEMA Code | S-588-4 |
Bolt and Screw Sizes
| Number of Wire Binding Screws per Port | 1 |
|---|---|
| Wire Binding Torque | 375 |
| Wire Binding Screw Size | 13/16 |
|---|
Color
| Cap Color Main | Blue |
|---|---|
| Color | Black |
| Cap Color Tap | Blue |
|---|
Environment and Temperature
| Environmental Conditions | Cold temperature rated to -45°C |
|---|---|
| Temperature Rating | 90°C |
| Flammability Rating | Insulation rated per UL 94 |
|---|
