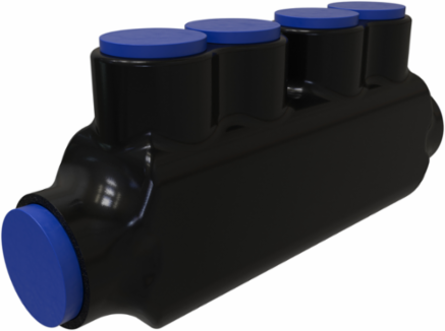

ILSCO PBT-750-F Nimbus Insulated Aluminum In-Line Splicer-Reducer Connector, Conductor Range 750-250, Flex 500-3/0 H,I,K 4/0-3/0 M 535.3-3/0 DLO, 2 Ports, Tin Plated, UL, CSA
- MPN: PBT-750-F
- UPC: 783669723588
- PPN: ILC-PBT-750-F
CAD
$218.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Nimbus Insulated Aluminum In-Line Splicer-Reducer Connector, Conductor Range 750-250, Flex 500-3/0 H,I,K 4/0-3/0 M 535.3-3/0 DLO, 2 Ports, Tin Plated, UL, CSA
Documentation & Downloads
Specifications
Key Specifications
- Weight
- 0 lbs
Voltage
- Voltage Rating
- 600 V
Dimensions
- Drive Size Main
- 1/2
- Height BX (IN)
- 4.75
- Width BX (IN)
- 5
Drive Type MainInternal Hex
Weight BX (LB)0
Testing Standards
- CSA File Number
- LR-29601
- Prop65 Compliance
- WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- UL / CULUS Specification
- UL 486A/B Listed
CSA StandardC22.2 No. 65-03
UL Control Number453G
UL File NumberE6207
Additional Class Attributes
- Connection
- Mechanical
- Number of Conductors
- 2
- Number of Ports / Wireways
- 2
- Replacement Part(s)
- Cap
Contains DE-OX®Yes
Number of Poles1
Number of Usable Ports2
Material and Finish
- Conductor Material
- Aluminum, Copper
- Insulation
- Plastisol
- Wire Binding Hardware Finish
- Tin
Connector FinishTin
MaterialAluminum
Wire Binding Hardware MaterialAluminum
Conductor Ranges
- Conductor Range AL Stranded (Primary, run, main, line)
- 750 kcmil - 4/0 Str
- Flex Conductor Range
- 500-3/0 H,I,K 4/0-3/0 M 535.3-3/0 DLO
Conductor Range CU Stranded (Primary, run, main, line)750 kcmil - 4/0 Str
Additional Technical Specifications
- Connector Amperage Rating AL (Derated where applicable)
- 435 Amps
- Conductor Type
- Flex, Stranded
Connector Amperage Rating CU (Derated where applicable)535 Amps
General
- Bag Quantity
- 1
- Dual Rated
- Yes
- UPC Code
- 78366972358
Carton Quantity DescriptionSTD PACK QTY 2
NEMA CodeS-588-4
Bolt and Screw Sizes
- Number of Wire Binding Screws per Port
- 1
- Wire Binding Torque
- 500
Wire Binding Screw Size15/16
Color
- Cap Color Main
- Blue
- Color
- Black
Cap Color TapBlue
Environment and Temperature
- Environmental Conditions
- Cold temperature rated to -45°C
- Temperature Rating
- 90°C
Flammability RatingInsulation rated per UL 94
