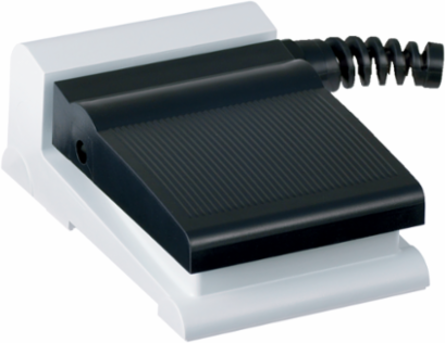

Schmersal 103003074 NKF1 Foot Switch, 1 Contact, IP67, Shock-Proof Thermoplastic, 2 m Cable
- MPN: 103003074
- PPN: SCM-103003074
CAD
$109.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
NKF1 Foot Switch, 1 Contact, IP67, Shock-Proof Thermoplastic, 2 m Cable
Features
- 1 Contact
- single-pedal types
- Design single-pedal types
- Compact, flat design
- Modern and symmetric design
- with Pre-wired cable, 2 m
- Contact versions consisting of switch-over or NO contacts
Documentation & Downloads
Specifications
Key Specifications
- Width
- 77 mm
- Depth
- 123 mm
Height49 mm
Electrical data
- Utilisation category AC-15
- 240 VAC
- Utilisation category DC-13
- 24 VDC
- Switching element
- Changeover contact (NO/NC)
Utilisation category AC-152.5 A
Utilisation category DC-131 A
Switching principleSnap action

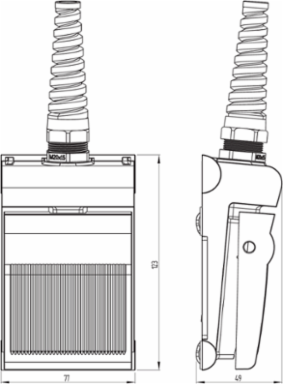

Mechanical data - Dimensions
- Width
- 77 mm
- Depth
- 123 mm
Height49 mm
General data - Features
- Number of changers
- 1
General data
- Standards
- EN IEC 60947-5-1
- Material of the pedal
- ABS thermoplastic
- RAL colour of the pedal
- 9005
- Gross weight
- 440 g
Enclosure materialshock-proof thermoplastic
Colour of the housingRAL 9006 (White aluminum)
Colour of the pedalBlack
Ambient conditions
- Degree of protection
- IP67
Ambient temperature-25 ... +60 °C
Mechanical data - Connection technique
- Termination
- Pre-wired cable
Length of cable2 m
Mechanical data
- Mechanical life, minimum
- 1,000,000 Operations
