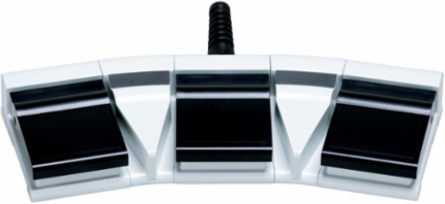

Schmersal 103003079 NKF3 Triple-Pedal Foot Switch, 3 Normally Open Contacts, IP67, 2 m Cable

  • MPN: 103003079
  • PPN: SCM-103003079

CAD

$501.09

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

NKF3 Triple-Pedal Foot Switch, 3 Normally Open Contacts, IP67, 2 m Cable

Features

  • 3 Contacts
  • Design triple-pedal types
  • Compact, flat design
  • Modern and symmetric design
  • with Pre-wired cable, 2 m
  • Contact versions consisting of switch-over or NO contacts

Documentation & Downloads

Specifications

Key Specifications

Width351 mm
Depth150 mm
Height49 mm

Electrical data

Utilisation category AC-15240 VAC
Utilisation category DC-1324 VDC
Switching elementNormally open contact (NO)
Utilisation category AC-152.5 A
Utilisation category DC-131 A
Switching principleSnap action

Mechanical data - Dimensions

Width351 mm
Depth150 mm
Height49 mm

General data - Features

Number of normally open (NO)3

General data

StandardsEN IEC 60947-5-1
Material of the pedalABS thermoplastic
RAL colour of the pedal9005
Gross weight1,570 g
Enclosure materialshock-proof thermoplastic
Colour of the housingRAL 9006 (White aluminum)
Colour of the pedalBlack

Ambient conditions

Degree of protectionIP67
Ambient temperature-25 ... +60 °C

Mechanical data - Connection technique

TerminationPre-wired cable
Length of cable2 m

Mechanical data

Mechanical life, minimum1,000,000 Operations
NKF3 Triple-Pedal Foot Switch, 3 Normally Open Contacts, IP67, 2 m Cable

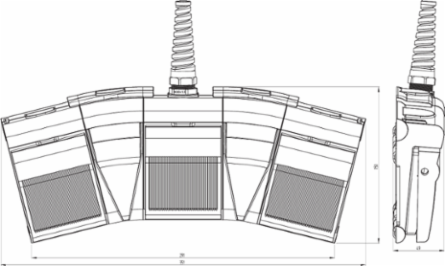

NKF3 Triple-Pedal Foot Switch, 3 Normally Open Contacts, IP67, 2 m Cable
