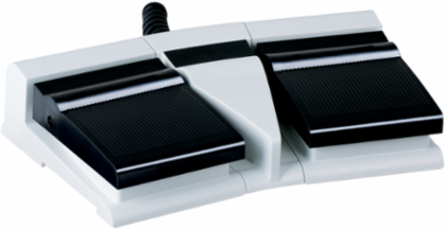

Schmersal 103003078 Compact Double-Pedal Foot Switch, 138 mm Depth, 2 m Pre-wired Cable, ABS Material

  • MPN: 103003078
  • PPN: SCM-103003078

CAD

$300.46

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Compact Double-Pedal Foot Switch, 138 mm Depth, 2 m Pre-wired Cable, ABS Material

Features

  • 2 Contacts
  • Design double-pedal type
  • Compact, flat design
  • Modern and symmetric design
  • with Pre-wired cable, 2 m
  • Contact versions consisting of switch-over or NO contacts

Documentation & Downloads

Specifications

Key Specifications

Width215 mm
Depth138 mm
Height49 mm

Electrical data

Utilisation category AC-15240 VAC
Utilisation category DC-1324 VDC
Switching elementNormally open contact (NO)
Utilisation category AC-152.5 A
Utilisation category DC-131 A
Switching principleSnap action

Mechanical data - Dimensions

Width215 mm
Depth138 mm
Height49 mm

General data - Features

Number of normally open (NO)1

General data

StandardsEN IEC 60947-5-1
Material of the pedalABS thermoplastic
RAL colour of the pedal9005
Gross weight1,020 g
Enclosure materialshock-proof thermoplastic
Colour of the housingRAL 9006 (White aluminum)
Colour of the pedalBlack

Ambient conditions

Degree of protectionIP67
Ambient temperature-25 ... +60 °C

Mechanical data - Connection technique

TerminationPre-wired cable
Length of cable2 m

Mechanical data

Mechanical life, minimum1,000,000 Operations

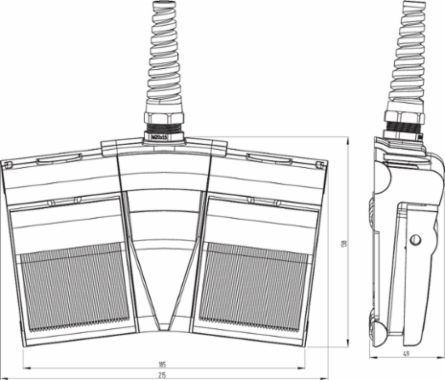

Compact Double-Pedal Foot Switch, 138 mm Depth, 2 m Pre-wired Cable, ABS Material
