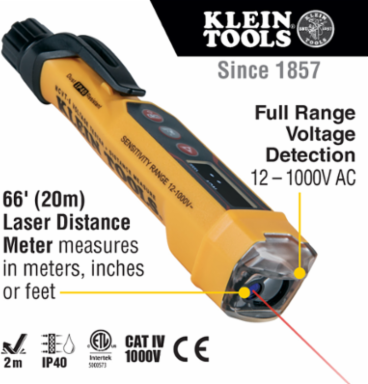

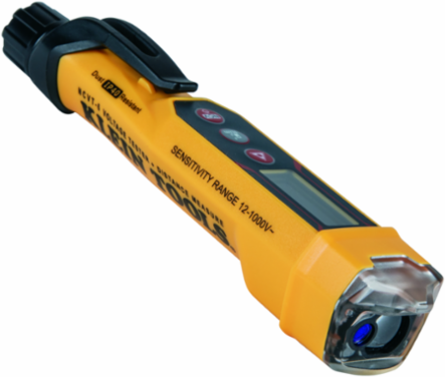

Klein Tools NCVT-6 Non-Contact Voltage Tester with Laser Distance Meter, 12-1000V AC, 66-Foot Range
- MPN: NCVT-6
- UPC: 092644692253
- PPN: KLT-NCVT-6
- UNSPSC: 41113637
CAD
$77.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Klein Tools NCVT-6 is a non-contact voltage tester (NCVT) with an integrated laser distance meter. It can detect voltage over the full-range from 12 to 1000 VAC and can measure distances from 2-Inch (51 mm) up to 66-Feet (20 m). The laser distance meter functions independently from the NCVT with a simple-to-use intuitive interface. Easy, single-button changes between voltage detection and laser distance measurements.
Features

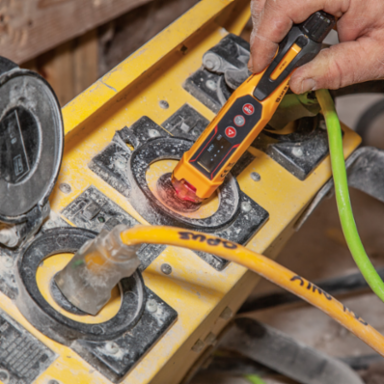

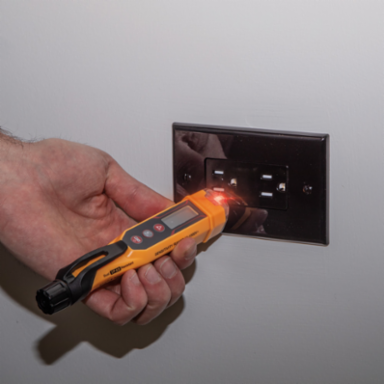

- Non-contact Tester determines AC voltage in cables, cords, circuit breakers, switches, outlets, wires, as well as security, entertainment, communications, environmental control, and irrigation systems
- Volt Pen detects AC voltage from 12 to 1000V with visual and audible indicators

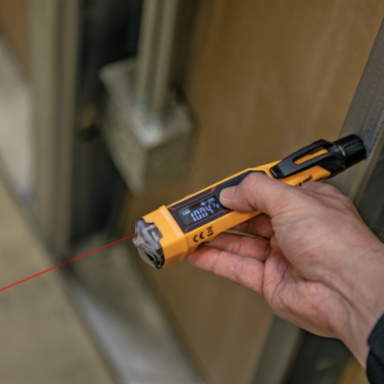

- Incorporates a 66-Foot (20 m) Laser Distance Meter that can measure in meters, inches in fractions or decimals, and feet in fractions or decimals, with accuracy up to 1/16-Inch (0.16 cm)

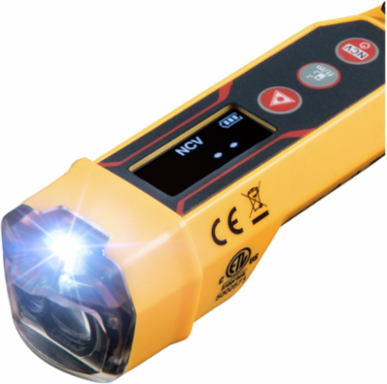

- High-visibility reverse contrast display for better viewing in low light conditions
- Laser Class II, 630 to 670nm, Max. Power <1mW
- Simple-to-use intuitive interface; easy single-button changes between laser distance measurements and voltage detection
- Delivers simultaneous visual and audible voltage indicators when AC voltage is detected
- Audible voltage indicator beeps at a greater frequency the higher the voltage that is sensed, or the closer to the voltage source
- Built to withstand a 6.6-Foot (2 m) drop
- Auto Power-Off conserves and extends battery life
- Screw-thread battery cap
- Lightweight tool with pocket clip for easy everyday carrying and storage
- CAT IV 1000V safety rating
- Ingress Protection IP40 Dust Resistant

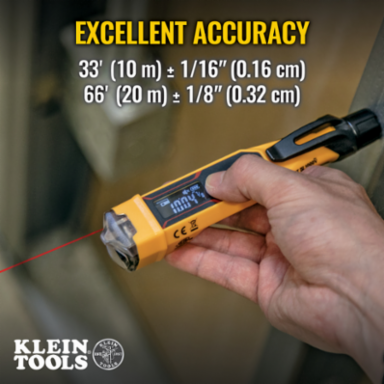

- Under normal operating conditions, at distances from 2-Inch to 32.8-Foot the NCVT-6 has an accuracy of +/- 1/16-Inch; and at distances greater than 32.8-Foot up to 65.6-Foot, accuracy of +/- 1/8-Inch
- Laser Distance Measuring, Laser Pointer, Reverse Contrast LCD, LED and Audible Beep Indications, Auto-Power Off, Pocket Clip
Documentation & Downloads
Specifications
Key Specifications
| Frequency | 50 - 500 Hz |
|---|---|
| Batteries | 2 x AAA |
| Application | Non-Contact Detection and Testing of AC Voltage with Integrated Laser Distance Meter |
| Pollution Degree | 2 |
| Included | NCVT; 2 x Alkaline 1.5V AAA Batteries |
| Ingress Protection | IP40 Dust Resistant |
| Overall Height | 3.4 cm (1.32 Inch) |
| Overall Length | 6.45 Inch (16.4 cm) |
| Width | 1.3200 in |
| Weight | 0.1560 lbs |
| Voltage | 12-1000V AC |
|---|---|
| Material | Plastic and Electronic Assemblies |
| Standard | CATIV 1000V, Laser: Class II, 630nm to 670nm, Max. Power <1mW |
| Type | Non-Contact Voltage Tester |
| Drop Protection | 6.6' (2 m) |
| Accuracy | 1/16" from 2" to 32.8'; 1/8" from 32.8' to 65.6' |
| Overall Width | 3.1 cm (1.21 Inch) |
| Height | 1.2100 in |
| Depth | 6.4500 in |
