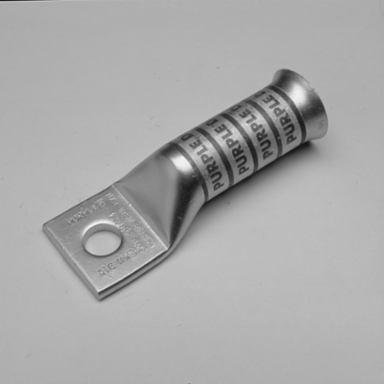

Burndy YAV25TC516FXB Terminal Connector, 1/0 AWG, 35kV, 5/16 Inch Stud Size, Copper, Tin Plated

MPN: YAV25TC516FXB
UPC: 781810158661
PPN: BUR-25005809

$45.15

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

UL Listed 90° C, 600 Volts to 35kV.

Documentation & Downloads

Specifications

Dimensions

Dimension - B Length inch	1.50 in
Dimension - Hole Size inch	0.33 in
Dimension - L Length Overall mm	67 mm
Dimension - N inch	0.34 in
Dimension - P inch	1.86 in
Dimension - Strip Length inch	1.50 in
Dimension - Z inch	0.36 in

Dimension - Bolt Hole Size inch	0.33 in
Dimension - Hole Size mm	8 mm
Dimension - Length Overall inch	2.64 in
Dimension - Outside Diameter inch	0.56 in
Dimension - Pad Width inch	0.83 in
Dimension - Stud Size inch	5/16 in
Physical Attribute - Tongue Angle	Straight

Certifications and Compliance

Certification - CSA Approved	Yes
Certification - UL Recognized	No
Industry Standard(s)	UL468A-468B
Standards - RoHS Compliance Status	CM

Certification - ETL	No
Certification - cULus	No
Standards - Industry Standards Met	UL468A-468B
UL Listed	Yes

Conductor Related

Conductor - Copper DLO Size	1/0 (275/#24) DLO
Conductor - Copper Flex H Size	1/0 AWG
Conductor - Copper Flex K Size	1/0 AWG
Conductor - Copper Str Navy Size	100 (61) Navy
Conductor - Material	Copper

Conductor - Copper Flex G Size	1/0 AWG
Conductor - Copper Flex I Size	1/0 AWG
Conductor - Copper Flex M Size	1/0 AWG
Conductor - Copper Str Size	1/0

General

Color Code	Pink
Die Index	12
Feature - Barrel Type	Long
Physical Attribute - Number of Holes	1
Plated	Yes
Trade Name	HYLUG™
UPC	781810158661

Connector Type	Terminal
Feature - Barrel Style	Belled
Material	Copper
Physical Attribute - Tongue Type	Standard
Plating Type	Tin - Electro Plated
Type	Long Barrel, Tin Plated
UPC 12 Digit	7818101586611
