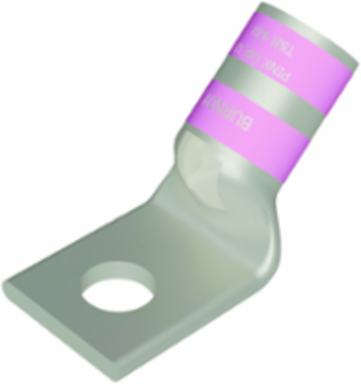

Burndy YA25L45 Copper Compression Terminal, 1/0 AWG, 5/16 Inch Stud, Tin Plated, Pink
- MPN: YA25L45
- UPC: 781810018590
- PPN: BUR-50227J
CAD
$29.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu compression terminal standard barrel,Single hole /w/ insp window,1/0 AWG,5/16" Stud,Pink,Tin plated
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 7/8 in
- Dimension - Bolt Hole Size inch
- 0.33 in
- Dimension - Hole Size mm
- 8 mm
- Dimension - Length Overall inch
- 1.88 in
- Dimension - Outside Diameter inch
- 0.51 in
- Dimension - Strip Length inch
- 15/16
- Dimension - Z inch
- 0.33 in
Dimension - B Length inch0.88 in
Dimension - D inch0.67 in
Dimension - L Length Overall mm48 mm
Dimension - N inch0.34 in
Dimension - Pad Width inch0.75 in
Dimension - Stud Size inch5/16
Physical Attribute - Tongue Angle45 Degree
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Industry Standard(s)
- UL467
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
Standards - Industry Standards MetUL467
UL ListedYes
Conductor Related
- Conductor - Copper DLO Size Range
- N/A
- Conductor - Copper Str Navy Size Range
- 100 (61) Navy
- Conductor - Copper Str Size Range
- 1/0
Conductor - Copper Str Navy Size100 (61) Navy
Conductor - Copper Str Size1/0
Conductor - MaterialCopper
General
- Color Code
- Pink
- Die Index
- 12;345
- Material
- Copper
- Plated
- Y
- Trade Name
- HYLUG™
- UPC
- 781810018590
Connector TypeTerminal
Feature - Barrel TypeStandard
Physical Attribute - Number of Holes1
Plating TypeTin - Electro Plated
TypeStandard Barrel, Tin Plated
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 20
