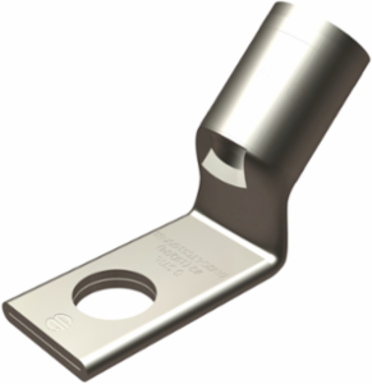

Burndy YAV25LTC14FX45 Hylug Terminal, 1/4 Inch Stud, Tin Plated, 600V-35kV, 1 Hole, Copper
- MPN: YAV25LTC14FX45
- UPC: 781810022719
- PPN: BUR-518530
CAD
$24.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Cu Tubing Hylug; 1 Hole with Inspection Window; 1/0 WELD, 1/0(275/#24) DLO, 1/0 AWG Code, 100 Navy; 600V-35kV; 1/4" stud; Compression; 0.27 in BCD
Documentation & Downloads
Specifications
Dimensions
| Dimension - B Length fraction | 11/16 in |
|---|---|
| Dimension - Bolt Hole Size inch | 0.27 in |
| Dimension - Height inch | 1.20 in |
| Dimension - Hole Size mm | 7 mm |
| Dimension - Length Overall inch | 1.71 in |
| Dimension - Outside Diameter inch | 0.56 in |
| Dimension - Strip Length inch | 11/16 |
| Physical Attribute - Tongue Angle | 45 Degree |
| Dimension - B Length inch | 0.69 in |
|---|---|
| Dimension - D inch | 0.64 |
| Dimension - Hole Size inch | 0.27 in |
| Dimension - L Length Overall mm | 43 mm |
| Dimension - N inch | 0.31 in |
| Dimension - Pad Width inch | 0.83 in |
| Dimension - Z inch | 0.33 in |
Certifications and Compliance
| Certification - CSA Approved | No |
|---|---|
| Certification - UL Recognized | No |
| Standards - RoHS Compliance Status | CM |
| Certification - ETL | No |
|---|---|
| Certification - cULus | No |
| UL Listed | Yes |
Conductor Related
| Conductor - Copper DLO Size | 1/0 (275/#24) DLO |
|---|---|
| Conductor - Copper Flex H Size | 1/0 AWG |
| Conductor - Copper Flex K Size | 1/0 AWG |
| Conductor - Copper Str Navy Size | 100 (61) Navy |
| Conductor - CopperWeld Str Size | 1/0 F AWG;1/0 G AWG;1/0 J AWG;1/0 K AWG |
| Conductor - Material | Copper |
| Conductor - Copper Flex G Size | 1/0 AWG |
|---|---|
| Conductor - Copper Flex I Size | 1/0 AWG |
| Conductor - Copper Flex M Size | 1/0 AWG |
| Conductor - Copper Str Size | 1/0 |
| Conductor - CopperWeld Str Size Range | 1/0 F AWG-1/0 K AWG |
General
| Color Code | Pink |
|---|---|
| Die Index | 12 |
| Feature - Barrel Type | Standard |
| Physical Attribute - Number of Holes | 1 |
| Plated | Y |
| Trade Name | HYLUG™ |
| UPC | 781810022719 |
| Connector Type | Terminal |
|---|---|
| Feature - Barrel Style | Chamfered |
| Material | Copper |
| Physical Attribute - Tongue Type | Standard |
| Plating Type | Tin - Electro Plated |
| Type | Standard Barrel, Tin Plated |
| UPC 12 Digit | 7818100227199 |
Electrical Ratings
| Rating - KVA | 35 kV |
|---|---|
| Voltage - Maximum | 35000 |
| Rating - Minimum Voltage | 600 |
|---|
