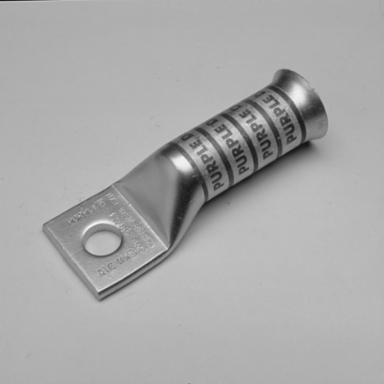

Burndy YA30TC12FXB Non-insulated Copper Terminal Connector, 250 kcmil, Tin Plated, 4.04 Inch Length
- MPN: YA30TC12FXB
- UPC: 781810127964
- PPN: BUR-50257C
CAD
$68.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
UL Listed 90° C, 600 Volts to 35kV.
Documentation & Downloads
Specifications
Dimensions
| Dimension - B Length fraction | 2-3/16 in |
|---|---|
| Dimension - Bolt Hole Size inch | 0.56 in |
| Dimension - Hole Size inch | 0.56 in |
| Dimension - L Length Overall mm | 103 mm |
| Dimension - N inch | 0.62 in |
| Dimension - Pad Width inch | 1.29 in |
| Dimension - Stud Size inch | 1/2 |
| Dimension - Z inch | 0.64 in |
| Dimension - B Length inch | 2.16 in |
|---|---|
| Dimension - Bolt Size fraction | 1/2 |
| Dimension - Hole Size mm | 14 mm |
| Dimension - Length Overall inch | 4.04 in |
| Dimension - Outside Diameter inch | 0.81 in |
| Dimension - Strip Length inch | 2-1/4 in |
| Dimension - Thread Size | 1/2 |
| Physical Attribute - Tongue Angle | Straight |
Certifications and Compliance
| Certification - CSA Approved | Yes |
|---|---|
| Certification - UL Recognized | No |
| Industry Standard(s) | UL468A-468B |
| Standards - RoHS Compliance Status | CM |
| Certification - ETL | No |
|---|---|
| Certification - cULus | No |
| Standards - Industry Standards Met | UL468A-468B |
| UL Listed | Yes |
Conductor Related
| Conductor - Copper DLO Size Range | N/A |
|---|---|
| Conductor - Copper Flex G Size Range | 250 Kcmil |
| Conductor - Copper Flex H Size Range | 250 kcmil |
| Conductor - Copper Flex I Size Range | 250 kcmil |
| Conductor - Copper Flex K Size Range | 250 kcmil |
| Conductor - Copper Flex M Size Range | 250 kcmil |
| Conductor - Copper Solid Size Range | 250 kcmil |
| Conductor - Material | Copper |
| Conductor - Copper Flex G Size | 250 kcmil |
|---|---|
| Conductor - Copper Flex H Size | 250 kcmil |
| Conductor - Copper Flex I Size | 250 kcmil |
| Conductor - Copper Flex K Size | 250 kcmil |
| Conductor - Copper Flex M Size | 250 kcmil |
| Conductor - Copper Solid Size | 250 kcmil |
| Conductor - Copper Str Size | 250 kcmil |
General
| Color Code | Yellow |
|---|---|
| Die Index | 16 |
| Feature - Barrel Type | Long |
| Physical Attribute - Number of Holes | 1 |
| Plated | Yes |
| Trade Name | HYLUG™ |
| UPC | 781810127964 |
| Connector Type | Terminal |
|---|---|
| Feature - Barrel Style | Belled |
| Material | Copper |
| Physical Attribute - Tongue Type | Standard |
| Plating Type | Tin Plated |
| Type | Long Barrel, Tin Plated |
| UPC 12 Digit | 7818101279644 |
Electrical Ratings
| Rating - KVA | 35 kV |
|---|---|
| Voltage - Maximum | 35000 |
| Rating - Minimum Voltage | 600 |
|---|
Logistics
| Minimum Pack Quantity | 25 |
|---|
