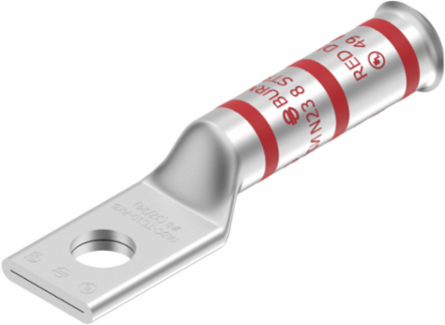

Burndy YA31TC12FXB HYLUGTM Long Barrel Copper Compression Connector, 1 Hole, 0.52 Inch Bolt Hole Size, 35 kV
- MPN: YA31TC12FXB
- UPC: 781810080757
- PPN: BUR-50255U
CAD
$68.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
BURNDY; HYLUG; YA-TC-FXB; Features: One Hole Copper Compression, Long Barrel, Belled End; For use on copper compression connections; RoHS Compatible
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 2-3/16 in
- Dimension - Bolt Hole Size inch
- 0.52 in
- Dimension - Hole Size inch
- 0.56 in
- Dimension - L Length Overall mm
- 104 mm
- Dimension - N inch
- 0.62 in
- Dimension - Pad Width inch
- 1.29 in
- Dimension - Stud Size inch
- 1/2
- Physical Attribute - Tongue Angle
- Straight
Dimension - B Length inch2.18 in
Dimension - Bolt Size fraction1/2
Dimension - Hole Size mm14 mm
Dimension - Length Overall inch4.09 in
Dimension - Outside Diameter inch0.88 in
Dimension - Strip Length inch2-1/4
Dimension - Z inch0.64 in
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Industry Standard(s)
- UL468A-468B
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
Standards - Industry Standards MetUL468A-468B
UL ListedYes
Conductor Related
- Conductor - Copper DLO Size
- 263 (637/24) DLO
- Conductor - Copper Flex K Size
- 250 kcmil
- Conductor - Material
- Copper
Conductor - Copper Flex I Size250 kcmil
Conductor - Copper Flex M Size250 kcmil
General
- Color Code
- White
- Die Index
- 17
- Feature - Barrel Type
- Long
- Physical Attribute - Number of Holes
- 1
- Plated
- Y
- Trade Name
- HYLUG™
- UPC
- 781810080757
Connector TypeTerminal
Feature - Barrel StyleBelled
MaterialCopper
Physical Attribute - Tongue TypeStandard
Plating TypeTin - Electro Plated
TypeLong Barrel, Tin Plated
UPC 12 Digit7818100807577
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 10
