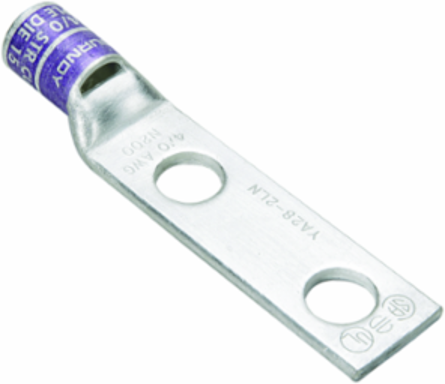

Burndy YA322LN Non-Insulated Tin Plated Terminal, 400 kcmil, 1/2 Inch Stud, 4.88 Inch Length
- MPN: YA322LN
- UPC: 781810505526
- PPN: BUR-502552
CAD
$69.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu Comp Terminal Code Cond, Bvl Entry, 2 Hole/W/InspWindow, 400 kcmil Str Code, 400 Navy, 600 V-35 kV, 1/2" Stud, 1.75" Spacing, Std bbl, Blue, 19 or 470 Index.
Documentation & Downloads
Specifications
Dimensions
| Dimension - B Length fraction | 1-3/16 in |
|---|---|
| Dimension - Bolt Hole Size inch | 0.52 in |
| Dimension - D inch | 3.02 in |
| Dimension - L Length Overall mm | 124 mm |
| Dimension - N inch | 0.63 in |
| Dimension - Pad Width inch | 1.40 in |
| Dimension - Stud Size inch | 1/2 |
| Physical Attribute - Tongue Angle | Straight |
| Dimension - B Length inch | 1.19 in |
|---|---|
| Dimension - Bolt Size fraction | 1/2 |
| Dimension - Hole Size mm | 14 mm |
| Dimension - Length Overall inch | 4.88 in |
| Dimension - Outside Diameter inch | 0.95 in |
| Dimension - Strip Length inch | 1-1/4 |
| Dimension - Z inch | 0.64 in |
Certifications and Compliance
| Certification - CSA Approved | Yes |
|---|---|
| Certification - UL Recognized | No |
| Standards - RoHS Compliance Status | CM |
| Certification - ETL | No |
|---|---|
| Certification - cULus | No |
| UL Listed | Yes |
Conductor Related
| Conductor - Copper DLO Size Range | N/A |
|---|---|
| Conductor - Copper Str Navy Size Range | 400 (127) Navy |
| Conductor - Copper Str Size Range | 400 kcmil |
| Conductor - Copper Str Navy Size | 400 (127) Navy |
|---|---|
| Conductor - Copper Str Size | 400 kcmil |
| Conductor - Material | Copper |
General
| Application | For Code Conductor |
|---|---|
| Connector Type | Terminal |
| Feature - Barrel Type | Standard |
| Physical Attribute - Number of Holes | 2 |
| Plated | Y |
| Sub Brand | HYLUG |
| Type | Standard Barrel, Tin Plated |
| Color Code | Blue |
|---|---|
| Die Index | 19;470 |
| Material | Copper |
| Physical Attribute - Tongue Type | Standard |
| Plating Type | Tin - Electro Plated |
| Trade Name | HYLUG™ |
| UPC | 781810505526 |
Electrical Ratings
| Rating - KVA | 35 kV |
|---|---|
| Voltage - Maximum | 35000 |
| Rating - Minimum Voltage | 600 |
|---|
Logistics
| Minimum Pack Quantity | 1 |
|---|
