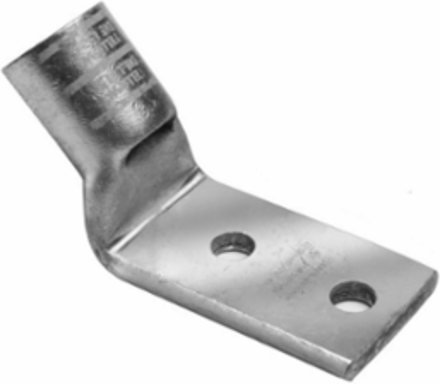

Burndy YA34L2NTCFX45 Non-insulated Tin Plated Terminal, 373.7 DLO, 1/2 Inch Stud, 45 Angle
- MPN: YA34L2NTCFX45
- UPC: 781810020173
- PPN: BUR-50242G
CAD
$110.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Cu Comp Terminal, 2 Holes W/InspWindow, 373.7 kcmil (925/#24)DLO (350 kcmil Flex), 1/2" Stud, 1.75" Spacing, 45 Deg Bent, Standard Brrl
Documentation & Downloads
Specifications
Dimensions
| Dimension - B Length fraction | 1-1/4 in |
|---|---|
| Dimension - Bolt Hole Size inch | 0.52 in |
| Dimension - Height inch | 2.25 in |
| Dimension - Hole Size mm | 14 mm |
| Dimension - Length Overall inch | 5.00 in |
| Dimension - Outside Diameter inch | 1.06 in |
| Dimension - Strip Length inch | 1-5/16 |
| Physical Attribute - Tongue Angle | 45 Degree |
| Dimension - B Length inch | 1.27 in |
|---|---|
| Dimension - Bolt Size fraction | 1/2 |
| Dimension - Hole Size inch | 0.56 in |
| Dimension - L Length Overall mm | 127 mm |
| Dimension - N inch | 0.63 in |
| Dimension - Pad Width inch | 1.55 in |
| Dimension - Z inch | 0.64 in |
Certifications and Compliance
| Certification - CSA Approved | Yes |
|---|---|
| Certification - UL Recognized | No |
| Standards - RoHS Compliance Status | CM |
| Certification - ETL | No |
|---|---|
| Certification - cULus | No |
| UL Listed | Yes |
Conductor Related
| Conductor - Copper DLO Size | 373.7 (925/#24) DLO |
|---|---|
| Conductor - Copper Flex G Size | 350 kcmil |
| Conductor - Copper Flex H Size | 350 kcmil |
| Conductor - Copper Flex I Size | 350 kcmil |
| Conductor - Copper Flex K Size | 350 kcmil |
| Conductor - Copper Flex M Size | 350 kcmil |
| Conductor - Material | Copper |
| Conductor - Copper DLO Size Range | 373.7 (925/#24) DLO |
|---|---|
| Conductor - Copper Flex G Size Range | 350 kcmil |
| Conductor - Copper Flex H Size Range | 350 kcmil |
| Conductor - Copper Flex I Size Range | 350 kcmil |
| Conductor - Copper Flex K Size Range | 350 kcmil |
| Conductor - Copper Flex M Size Range | 350 kcmil |
General
| Color Code | Blue |
|---|---|
| Die Index | 19;470 |
| Feature - Barrel Type | Standard |
| Physical Attribute - Number of Holes | 2 |
| Plated | Y |
| Trade Name | HYLUG™ |
| UPC | 781810020173 |
| Connector Type | Terminal |
|---|---|
| Feature - Barrel Style | Chamfered |
| Material | Copper |
| Physical Attribute - Tongue Type | Standard |
| Plating Type | Tin |
| Type | Standard Barrel, Tin Plated |
| UPC 12 Digit | 7818100201733 |
Electrical Ratings
| Rating - KVA | 35 kV |
|---|---|
| Voltage - Maximum | 35000 |
| Rating - Minimum Voltage | 600 |
|---|
Logistics
| Minimum Pack Quantity | 10 |
|---|
