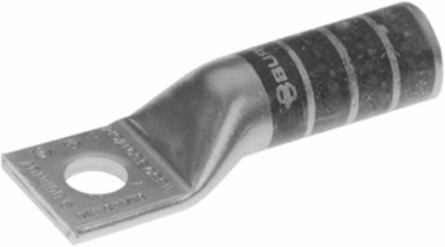

Burndy YA3CTC38 Non-Insulated Terminal, Tin Plated, 3 AWG, 35 kV, 3/8 Inch Stud
- MPN: YA3CTC38
- UPC: 781810019627
- PPN: BUR-50238L
CAD
$18.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Uninsul Cu Comp Terminal Code Cond, Bvl Entry, 1 Hole/W/O/InspWindow, #2 Sol,#3 AWG Code, 50 Navy, 600 V-35 kV, 3/8" Stud, Lng bbl, White, 9 Index.
Documentation & Downloads
Specifications
Dimensions
| Dimension - B Length inch | 1.25 in |
|---|---|
| Dimension - D inch | 0.83 in |
| Dimension - Hole Size mm | 10 mm |
| Dimension - Length Overall inch | 2.42 in |
| Dimension - Outside Diameter inch | 0.38 in |
| Dimension - Strip Length inch | 1-5/16 |
| Dimension - Z inch | 0.42 in |
| Dimension - Bolt Hole Size inch | 0.39 in |
|---|---|
| Dimension - Hole Size inch | 0.40 in |
| Dimension - L Length Overall mm | 61 mm |
| Dimension - N inch | 0.41 in |
| Dimension - Pad Width inch | 0.58 in |
| Dimension - Stud Size inch | 3/8 |
| Physical Attribute - Tongue Angle | Straight |
Certifications and Compliance
| Certification - CSA Approved | Yes |
|---|---|
| Certification - UL Recognized | No |
| Industry Standard(s) | UL467 |
| Standards - RoHS Compliance Status | CM |
| Certification - ETL | No |
|---|---|
| Certification - cULus | No |
| Standards - Industry Standards Met | UL467 |
| UL Listed | Yes |
Conductor Related
| Conductor - Copper Solid Size | 2 AWG |
|---|---|
| Conductor - Copper Str Navy Size | 50 (19) Navy |
| Conductor - Copper Str Size | 3 AWG |
| Conductor - Copper Solid Size Range | 2 AWG |
|---|---|
| Conductor - Copper Str Navy Size Range | 50 (19) Navy |
| Conductor - Material | Copper |
General
| Application | For Code Conductor |
|---|---|
| Connector Type | Terminal |
| Feature - Barrel Style | Chamfered |
| Material | Copper |
| Physical Attribute - Tongue Type | Standard |
| Plating Type | Tin Electro Plated |
| Temperature Rating | 194 |
| Type | Long Barrel, Tin Plated |
| UPC 12 Digit | 7818100196277 |
| Color Code | White |
|---|---|
| Die Index | 9 |
| Feature - Barrel Type | Long |
| Physical Attribute - Number of Holes | 1 |
| Plated | Y |
| Sub Brand | HYLUG |
| Trade Name | HYLUG™ |
| UPC | 781810019627 |
Electrical Ratings
| Rating - KVA | 35 kV |
|---|---|
| Voltage - Maximum | 35000 |
| Rating - Minimum Voltage | 600 |
|---|
Logistics
| Minimum Pack Quantity | 1 |
|---|
