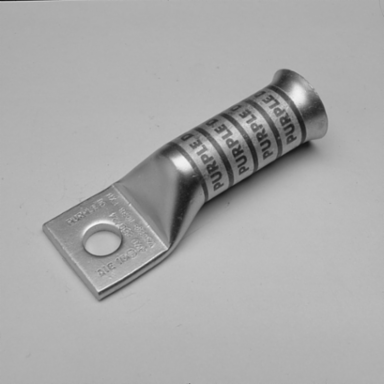

Burndy YAV6CTC10FXB HYLUGTM 6 AWG Long Barrel Terminal, Tin Plated, 1 Hole, Rated 35 kV
- MPN: YAV6CTC10FXB
- UPC: 781810080856
- PPN: BUR-518608
CAD
$22.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu HYLUG™; 1 Hole; #6 AWG CLASS B THRU M DLO (61/24), 16mm² CLASS 2 & CLASS 5, NAVY 30; #10 Stud, Long, Compression, Blue, 600 Volts to 35kV, Tin Plated
Documentation & Downloads
Specifications
Dimensions
| Dimension - B Length inch | 1.22 in |
|---|---|
| Dimension - Hole Size inch | 0.21 in |
| Dimension - L Length Overall mm | 51 mm |
| Dimension - N inch | 0.25 in |
| Dimension - Pad Width inch | 0.48 in |
| Dimension - Stud Size inch | #10 |
| Physical Attribute - Tongue Angle | Straight |
| Dimension - Bolt Hole Size inch | 0.21 in |
|---|---|
| Dimension - Hole Size mm | 5 mm |
| Dimension - Length Overall inch | 2.00 in |
| Dimension - Outside Diameter inch | 0.31 in |
| Dimension - Strip Length inch | 1-5/16 in |
| Dimension - Z inch | 0.26 in |
Certifications and Compliance
| Certification - CSA Approved | Yes |
|---|---|
| Certification - UL Recognized | No |
| Industry Standard(s) | UL468A-468B |
| Standards - RoHS Compliance Status | CM |
| Certification - ETL | No |
|---|---|
| Certification - cULus | No |
| Standards - Industry Standards Met | UL468A-468B |
| UL Listed | Yes |
Conductor Related
| Conductor - Copper DLO Size | 6 (61/24) DLO |
|---|---|
| Conductor - Copper Flex G Size | 6 AWG |
| Conductor - Copper Flex H Size | 6 AWG |
| Conductor - Copper Flex I Size | 6 AWG |
| Conductor - Copper Flex K Size | 6 AWG |
| Conductor - Copper Flex M Size | 6 AWG |
| Conductor - Copper Str Navy Size | 30 Navy |
| Conductor - Copper Str Size | 16 mm² |
| Conductor - Material | Copper |
| Conductor - Copper DLO Size Range | 6 (61/24) DLO |
|---|---|
| Conductor - Copper Flex G Size Range | 6 AWG |
| Conductor - Copper Flex H Size Range | 6 AWG |
| Conductor - Copper Flex I Size Range | 6 AWG |
| Conductor - Copper Flex K Size Range | 6 AWG |
| Conductor - Copper Flex M Size Range | 6 AWG |
| Conductor - Copper Str Navy Size Range | 30 Navy |
| Conductor - Copper Str Size Range | 16 mm² |
General
| Color Code | Blue |
|---|---|
| Die Index | 7 |
| Feature - Barrel Type | Long |
| Physical Attribute - Number of Holes | 1 |
| Plated | Y |
| Trade Name | HYLUG™ |
| UPC | 781810080856 |
| Connector Type | Terminal |
|---|---|
| Feature - Barrel Style | Belled |
| Material | Copper |
| Physical Attribute - Tongue Type | Standard |
| Plating Type | Tin - Electro Plated |
| Type | Long Barrel, Tin Plated |
| UPC 12 Digit | 7818100808566 |
Electrical Ratings
| Rating - KVA | 35 kV |
|---|---|
| Voltage - Maximum | 35000 |
| Rating - Minimum Voltage | 600 |
|---|
Logistics
| Minimum Pack Quantity | 50 |
|---|
