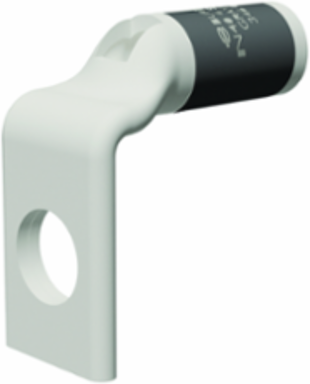

Burndy YA4CL190 Copper HYLUGTM Terminal, 4 AWG, 90 Degree Bend, 0.75 Inch Length, Tin Plated
- MPN: YA4CL190
- UPC: 781810310649
- PPN: BUR-10016835
CAD
$14.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Copper HYLUG™, Short Barrel, Single hole /W/ insp window, #4 AWG, 40 Navy, #8 #10 stud, 8 or 346 index, Gray, Electro-Tin Plated, 90 Degree Bend
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 13/16 in
- Dimension - D inch
- 0.49 in
- Dimension - Hole Size mm
- 5 mm
- Dimension - Length Overall inch
- 0.75 in
- Dimension - Outside Diameter inch
- 0.34 in
- Dimension - Strip Length inch
- 7/8
- Dimension - Z inch
- 0.27 in
Dimension - B Length inch0.81 in
Dimension - Height inch1.22 in
Dimension - L Length Overall mm19 mm
Dimension - N inch0.22 in
Dimension - Pad Width inch0.50 in
Dimension - Stud Size inch#8;#10
Physical Attribute - Tongue Angle90 Degree
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Industry Standard(s)
- UL467
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
Standards - Industry Standards MetUL467
UL ListedYes
Conductor Related
- Conductor - Copper DLO Size Range
- N/A
- Conductor - Copper Str Navy Size Range
- 40 (19) Navy
- Conductor - Copper Str Size Range
- 4 AWG
Conductor - Copper Str Navy Size40 (19) Navy
Conductor - Copper Str Size4 AWG
Conductor - MaterialCopper
General
- Color Code
- Gray
- Die Index
- 8;346
- Material
- Copper
- Plated
- Y
- Trade Name
- HYLUG™
- UPC
- 781810310649
Connector TypeTerminal
Feature - Barrel TypeStandard
Physical Attribute - Number of Holes1
Plating TypeTin - Electro Plated
TypeStandard Barrel, Tin Plated
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 5
