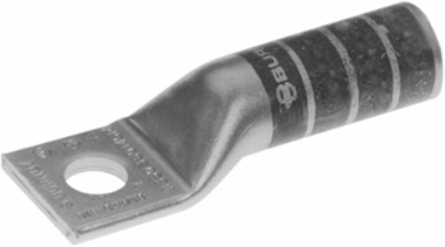

Burndy YA4CTC10 Non-Insulated Tin Plated HYLUGTM Terminal, 4 AWG, 1 Hole, 35 kV
- MPN: YA4CTC10
- UPC: 781810019054
- PPN: BUR-50232N
CAD
$16.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Cu Tubing HYLUG™, 1 Hole w/o Inspection Window, #4 AWG Code,40 Navy, up to 35kV, #10 stud, Long, Compression,Gray
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length inch
- 1.12
- Dimension - Hole Size inch
- 0.21
- Dimension - L Length Overall mm
- 49
- Dimension - N inch
- 0.25
- Dimension - Pad Width inch
- 0.5
- Dimension - Stud Size inch
- 3/16 in
- Physical Attribute - Tongue Angle
- Straight
Dimension - Bolt Hole Size inch0.21
Dimension - Hole Size mm5
Dimension - Length Overall inch1.94
Dimension - Outside Diameter inch0.34
Dimension - Strip Length inch1-3/16 in
Dimension - Z inch0.27
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Industry Standard(s)
- UL467
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
Standards - Industry Standards MetUL467
UL ListedYes
Conductor Related
- Conductor - Copper Solid Size
- 4 AWG
- Conductor - Copper Str Navy Size Range
- 40 (19) Navy
- Conductor - Material
- Copper
Conductor - Copper Str Navy Size40 (19) Navy
Conductor - Copper Str Size4 AWG
General
- Color Code
- Gray
- Die Index
- 8;346
- Feature - Barrel Type
- Long
- Physical Attribute - Number of Holes
- 1
- Plated
- Y
- Trade Name
- HYLUG™
- UPC
- 781810019054
Connector TypeTerminal
Feature - Barrel StyleChamfered
MaterialCopper
Physical Attribute - Tongue TypeStraight
Plating TypeElectro-Tin
TypeLong Barrel, Electro-Tin Plated
UPC 12 Digit7818100190544
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 1
