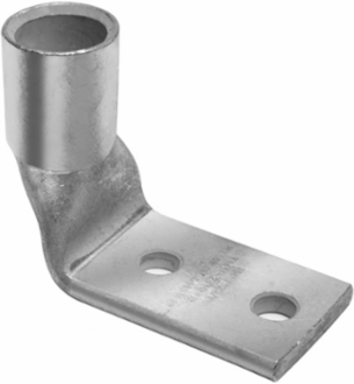

Burndy YA6CL2TC3890 Non-Insulated Tin-Plated Terminal, 6 AWG, 3/8 Inch Stud, 2 Holes
- MPN: YA6CL2TC3890
- UPC: 781810146248
- PPN: BUR-25004764
CAD
$27.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu compression tubular terminals-code conductor, 2 holes/W/ insp window, #6 AWG, 3/8" stud, Tin plated, Blue, 7 or 374 index
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 9/16 in
- Dimension - Bolt Hole Size inch
- 0.39 in
- Dimension - Hole Size inch
- 0.41 in
- Dimension - L Length Overall mm
- 52 mm
- Dimension - N inch
- 0.41 in
- Dimension - Pad Width inch
- 0.58 in
- Dimension - Stud Size inch
- 3/8 in
- Physical Attribute - Tongue Angle
- 90 Degree
Dimension - B Length inch0.54 in
Dimension - Height inch0.88 in
Dimension - Hole Size mm10 mm
Dimension - Length Overall inch2.06 in
Dimension - Outside Diameter inch0.29 in
Dimension - Strip Length inch5/8 in
Dimension - Z inch0.42 in
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Industry Standard(s)
- UL468A-468B
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
Standards - Industry Standards MetUL468A-468B
UL ListedYes
Conductor Related
- Conductor - Copper Solid Size
- 6 AWG
- Conductor - Material
- Copper
Conductor - Copper Str Size6 AWG
General
- Color Code
- Blue
- Die Index
- 7;374
- Material
- Copper
- Physical Attribute - Tongue Type
- Standard
- Plating Type
- Tin - Electro Plated
- Type
- Standard Barrel, Tin Plated
- UPC 12 Digit
- 7818101462488
Connector TypeTerminal
Feature - Barrel TypeStandard
Physical Attribute - Number of Holes2
PlatedY
Trade NameHYLUG™
UPC781810146248
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 1
