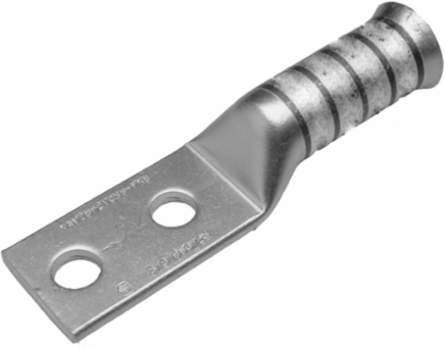

Burndy YAV6C2TC38FXB Long Barrel Tin-Plated Connector, 6 AWG, 3/8 Inch Stud, 2 Holes
- MPN: YAV6C2TC38FXB
- UPC: 781810138182
- PPN: BUR-25003998
CAD
$20.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu compression long barrel flex conductor, 2 holes/W/O/ insp window, #6 str(61/24), #6 AWG, 3/8" stud, Tin plated, Blue, 49 index
Documentation & Downloads
Specifications
Dimensions
| Dimension - B Length fraction | 1-5/16 in |
|---|---|
| Dimension - Bolt Hole Size inch | 0.39 in |
| Dimension - Hole Size inch | 0.40 in |
| Dimension - L Length Overall mm | 84 mm |
| Dimension - N inch | 0.41 in |
| Dimension - Pad Width inch | 0.58 in |
| Dimension - Stud Size inch | 3/8 |
| Physical Attribute - Tongue Angle | Straight |
| Dimension - B Length inch | 1.22 in |
|---|---|
| Dimension - D inch | 1.83 in |
| Dimension - Hole Size mm | 10 mm |
| Dimension - Length Overall inch | 3.32 in |
| Dimension - Outside Diameter inch | 0.31 in |
| Dimension - Strip Length inch | 1-5/16 |
| Dimension - Z inch | 0.42 in |
Certifications and Compliance
| Certification - CSA Approved | Yes |
|---|---|
| Certification - UL Recognized | No |
| Standards - RoHS Compliance Status | CM |
| Certification - ETL | No |
|---|---|
| Certification - cULus | No |
| UL Listed | Yes |
Conductor Related
| Conductor - Copper DLO Size | 6 (61/#24) DLO |
|---|---|
| Conductor - Copper Flex H Size | 6 AWG |
| Conductor - Copper Flex K Size | 6 AWG |
| Conductor - Copper Flex M Size Range | 6 AWG |
| Conductor - Copper Str Size | 6 AWG |
| Conductor - Copper Flex G Size | 6 AWG |
|---|---|
| Conductor - Copper Flex I Size | 6 AWG |
| Conductor - Copper Flex M Size | 6 AWG |
| Conductor - Copper Solid Size Range | 6 Str |
| Conductor - Material | Copper |
General
| Color Code | Blue |
|---|---|
| Die Index | 7 |
| Feature - Barrel Type | Long |
| Physical Attribute - Number of Holes | 2 |
| Plated | Yes |
| Trade Name | HYLUG™ |
| UPC | 781810138182 |
| Connector Type | Terminal |
|---|---|
| Feature - Barrel Style | Belled |
| Material | Copper |
| Physical Attribute - Tongue Type | Standard |
| Plating Type | Tin - Electro Plated |
| Type | Long Barrel, Tin Plated |
| UPC 12 Digit | 7818101381822 |
Electrical Ratings
| Rating - KVA | 35 kV |
|---|---|
| Voltage - Maximum | 35000 |
| Rating - Minimum Voltage | 600 |
|---|
Logistics
| Minimum Pack Quantity | 1 |
|---|
