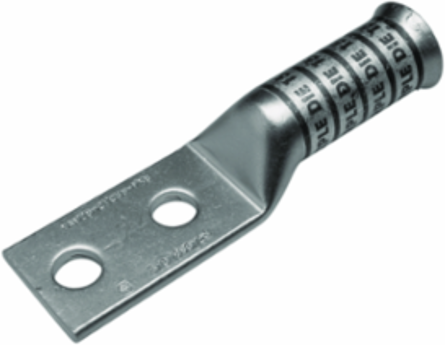

Burndy YAV6C2TC14E2FXB HYLUGTM Long Barrel Tin Plated Terminal, 2 Holes, 6 AWG, 35 kV, 1/4 Inch Stud
- MPN: YAV6C2TC14E2FXB
- UPC: 781810060261
- PPN: BUR-518661
CAD
$21.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu Compression telecom Terminal, 2 Holes, #6 Str (61/24)DLO Flex, #6 AWG Code, 600V - 35kV, 1/4" Stud, 0.75" Spacing, Long Barrel, Belled End
Documentation & Downloads
Specifications
Dimensions
| Dimension - B Length fraction | 1-5/16 in |
|---|---|
| Dimension - Bolt Hole Size inch | 0.27 in |
| Dimension - Hole Size inch | 0.27 in |
| Dimension - L Length Overall mm | 73 mm |
| Dimension - N inch | 0.31 in |
| Dimension - Pad Width inch | 0.48 in |
| Dimension - Stud Size inch | 1/4 |
| Physical Attribute - Tongue Angle | Straight |
| Dimension - B Length inch | 1.22 in |
|---|---|
| Dimension - D inch | 1.41 |
| Dimension - Hole Size mm | 7 mm |
| Dimension - Length Overall inch | 2.88 in |
| Dimension - Outside Diameter inch | 0.31 in |
| Dimension - Strip Length inch | 1-5/16 |
| Dimension - Z inch | 0.33 in |
Certifications and Compliance
| Certification - CSA Approved | Yes |
|---|---|
| Certification - UL Recognized | No |
| Standards - RoHS Compliance Status | CM |
| Certification - ETL | No |
|---|---|
| Certification - cULus | No |
| UL Listed | Yes |
Conductor Related
| Conductor - Copper DLO Size | 6 (61/#24) DLO |
|---|---|
| Conductor - Copper Flex H Size | 6 AWG |
| Conductor - Copper Flex K Size | 6 AWG |
| Conductor - Copper Flex M Size Range | 6 AWG |
| Conductor - Material | Copper |
| Conductor - Copper Flex G Size | 6 AWG |
|---|---|
| Conductor - Copper Flex I Size | 6 AWG |
| Conductor - Copper Flex M Size | 6 AWG |
| Conductor - Copper Str Size | 6 AWG |
General
| Color Code | Blue |
|---|---|
| Die Index | 7 |
| Feature - Barrel Type | Long |
| Physical Attribute - Number of Holes | 2 |
| Plated | Yes |
| Trade Name | HYLUG™ |
| UPC | 781810060261 |
| Connector Type | Terminal |
|---|---|
| Feature - Barrel Style | Belled |
| Material | Copper |
| Physical Attribute - Tongue Type | Standard |
| Plating Type | Tin - Electro Plated |
| Type | Long Barrel, Tin Plated |
| UPC 12 Digit | 7818100602611 |
Electrical Ratings
| Rating - KVA | 35 kV |
|---|---|
| Voltage - Maximum | 35000 |
| Rating - Minimum Voltage | 600 |
|---|
Logistics
| Minimum Pack Quantity | 50 |
|---|
