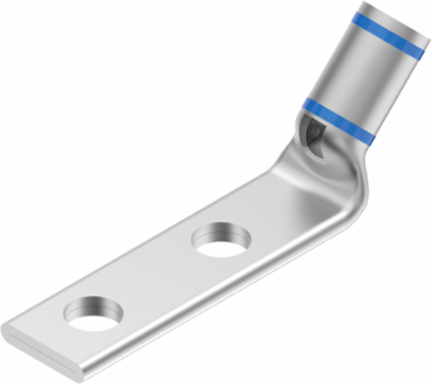

Burndy YAV6CL2TC14FX45 Tin Plated Terminal Connector, 2 Hole, 6 AWG, 35 kV, 45 Degree Angle
- MPN: YAV6CL2TC14FX45
- UPC: 781810022894
- PPN: BUR-518557
CAD
$25.86
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu Comp Terminal Flex Cond, 2 Hole/W/InspWindow, #6 Weld, 6(61/#24)DLO Flex, #6 AWG Code, 30 Navy, 600 V-35 kV, 1/4" Stud, 0.63" Spacing, 45 Deg Bent, Std bbl.
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 1/2 in
- Dimension - Bolt Hole Size inch
- 0.27 in
- Dimension - Hole Size mm
- 7 mm
- Dimension - Length Overall inch
- 2.02 in
- Dimension - Outside Diameter inch
- 0.31 in
- Dimension - Strip Length inch
- 9/16 in
- Physical Attribute - Tongue Angle
- 45 Degree
Dimension - B Length inch0.50 in
Dimension - Hole Size inch0.27 in
Dimension - L Length Overall mm51 mm
Dimension - N inch0.31 in
Dimension - Pad Width inch0.48 in
Dimension - Z inch0.34 in
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - Copper DLO Size
- 6 (61/24) DLO
- Conductor - Copper Flex G Size
- 6 AWG
- Conductor - Copper Flex H Size
- 6 AWG
- Conductor - Copper Flex I Size
- 6 AWG
- Conductor - Copper Flex K Size
- 6 AWG
- Conductor - Copper Flex M Size
- 6 AWG
- Conductor - Copper Solid Size
- 6 AWG
- Conductor - Copper Str Navy Size
- 30 Navy
- Conductor - Copper Str Size
- 6 AWG
- Conductor - CopperWeld Str Size
- #6 WELD (61/24)
- Conductor - Material
- Copper
Conductor - Copper DLO Size Range6 (61/24) DLO
Conductor - Copper Flex G Size Range6 AWG
Conductor - Copper Flex H Size Range6 AWG
Conductor - Copper Flex I Size Range6 AWG
Conductor - Copper Flex K Size Range6 AWG
Conductor - Copper Flex M Size Range6 AWG
Conductor - Copper Solid Size Range6 AWG
Conductor - Copper Str Navy Size Range30 Navy
Conductor - Copper Str Size Range6 AWG
Conductor - CopperWeld Str Size Range#6 WELD (61/24)
General
- Application
- For Flex Conductors
- Connector Type
- Terminal
- Feature - Barrel Type
- Standard
- Physical Attribute - Number of Holes
- 2
- Plated
- Y
- Sub Brand
- HYLUG
- Type
- Standard Barrel, Tin Plated
- UPC 12 Digit
- 7818100228944
Color CodeBlue
Die Index7;374
MaterialCopper
Physical Attribute - Tongue TypeStandard
Plating TypeTin - Electro Plated
Trade NameHYLUG™
UPC781810022894
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 1
