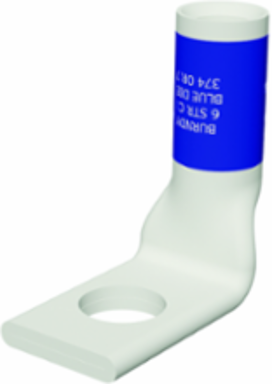

Burndy YA6CL690 Copper HYLUGTM Terminal, 6 AWG, 1/2 Inch Stud, 90 Degree Bend, Tin Plated
- MPN: YA6CL690
- UPC: 781810311363
- PPN: BUR-10004230
CAD
$31.14
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Copper HYLUG™, Short Barrel, Single hole /W/ insp window, #6 AWG, 1/2" stud, 7 or 374 index, Blue, Electro-Tin Plated, 90 Degree Bend
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 9/16 in
- Dimension - Bolt Hole Size inch
- 0.52 in
- Dimension - Height inch
- 0.99 in
- Dimension - L Length Overall mm
- 34 mm
- Dimension - N inch
- 0.53 in
- Dimension - Pad Width inch
- 0.75 in
- Dimension - Stud Size inch
- 1/2
- Physical Attribute - Tongue Angle
- 90 Degree
Dimension - B Length inch0.54 in
Dimension - D inch1.08 in
Dimension - Hole Size mm13 mm
Dimension - Length Overall inch1.33 in
Dimension - Outside Diameter inch0.29 in
Dimension - Strip Length inch9/16
Dimension - Z inch0.55 in
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Industry Standard(s)
- UL467
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
Standards - Industry Standards MetUL467
UL ListedYes
Conductor Related
- Conductor - Copper DLO Size Range
- N/A
- Conductor - Copper Str Size Range
- 6
Conductor - Copper Str Size6
Conductor - MaterialCopper
General
- Color Code
- Blue
- Die Index
- 7;374
- Material
- Copper
- Physical Attribute - Tongue Type
- Standard
- Plating Type
- Tin - Electro Plated
- Type
- Standard Barrel, Tin Plated
Connector TypeTerminal
Feature - Barrel TypeStandard
Physical Attribute - Number of Holes1
PlatedY
Trade NameHYLUG™
UPC781810311363
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 25
