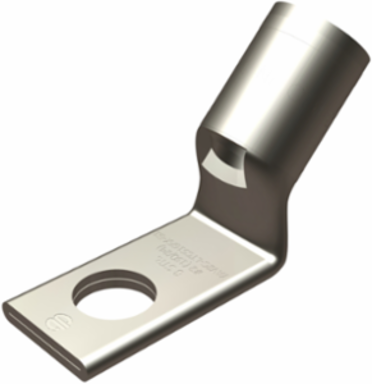

Burndy YA34LTC12FX45 HYLUGTM Non-Insulated Terminal Connector, 1 Hole, 1/2 Inch Stud, Tin Plated, 35 kV
- MPN: YA34LTC12FX45
- UPC: 781810129463
- PPN: BUR-50244H
CAD
$73.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu Tubing Hylug; 1 Hole with Inspection Window; 373.7 kcmil (925/#24) DLO, 350 Flex; 600V-35kV; 1/2" stud; Standard; Compression; 0.53 in BCD; Blue
Documentation & Downloads
Specifications
Dimensions
| Dimension - B Length fraction | 1-1/4 in |
|---|---|
| Dimension - Bolt Hole Size inch | 0.52 in |
| Dimension - Height inch | 2.24 in |
| Dimension - Hole Size mm | 13 mm |
| Dimension - Length Overall inch | 3.03 in |
| Dimension - Outside Diameter inch | 1.06 in |
| Dimension - Strip Length inch | 1-5/16 |
| Physical Attribute - Tongue Angle | 45 Degree |
| Dimension - B Length inch | 1.27 in |
|---|---|
| Dimension - Bolt Size fraction | 1/2 |
| Dimension - Hole Size inch | 0.53 in |
| Dimension - L Length Overall mm | 77 mm |
| Dimension - N inch | 0.53 in |
| Dimension - Pad Width inch | 1.55 in |
| Dimension - Z inch | 0.55 in |
Certifications and Compliance
| Certification - CSA Approved | Yes |
|---|---|
| Certification - UL Recognized | No |
| Standards - RoHS Compliance Status | CM |
| Certification - ETL | No |
|---|---|
| Certification - cULus | No |
| UL Listed | Yes |
Conductor Related
| Conductor - Copper DLO Size | 373.7 (925/#24) DLO |
|---|---|
| Conductor - Copper Flex G Size | 350 kcmil |
| Conductor - Copper Flex H Size | 350 kcmil |
| Conductor - Copper Flex I Size | 350 kcmil |
| Conductor - Copper Flex K Size | 350 kcmil |
| Conductor - Copper Flex M Size | 350 kcmil |
| Conductor - Material | Copper |
| Conductor - Copper DLO Size Range | 373.7 (925/#24) DLO |
|---|---|
| Conductor - Copper Flex G Size Range | 350 kcmil |
| Conductor - Copper Flex H Size Range | 350 kcmil |
| Conductor - Copper Flex I Size Range | 350 kcmil |
| Conductor - Copper Flex K Size Range | 350 kcmil |
| Conductor - Copper Flex M Size Range | 350 kcmil |
General
| Color Code | Blue |
|---|---|
| Die Index | 19;470 |
| Feature - Barrel Type | Standard |
| Physical Attribute - Number of Holes | 1 |
| Plated | Y |
| Trade Name | HYLUG™ |
| UPC | 781810129463 |
| Connector Type | Terminal |
|---|---|
| Feature - Barrel Style | Chamfered |
| Material | Copper |
| Physical Attribute - Tongue Type | Standard |
| Plating Type | Tin |
| Type | Standard Barrel, Tin Plated |
| UPC 12 Digit | 7818101294633 |
Electrical Ratings
| Rating - KVA | 35 kV |
|---|---|
| Voltage - Maximum | 35000 |
| Rating - Minimum Voltage | 600 |
|---|
Logistics
| Minimum Pack Quantity | 15 |
|---|
