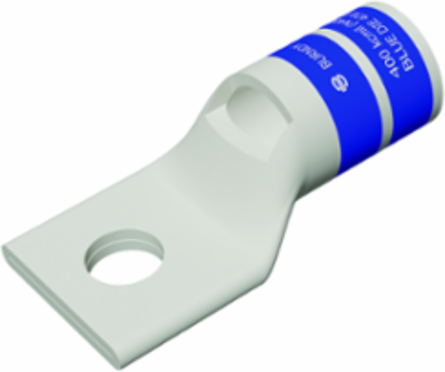

Burndy YA32L1 HYLUGTM Non-Insulated Terminal, 1/2 Inch Stud, 600V-35kV, Copper, Tin Plated
- MPN: YA32L1
- UPC: 781810505700
- PPN: BUR-502570
CAD
$54.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu Comp Terminal Code Cond, Bvl Entry, 1 Hole/W/InspWindow, 400 kcmil Str Code, 400 Navy, 600 V-35 kV, 1/2" Stud, Std bbl, Tin Plated, Blue, 19 or 470 Index.
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 1-3/16 in
- Dimension - Bolt Hole Size inch
- 0.52 in
- Dimension - D inch
- 1.08 in
- Dimension - L Length Overall mm
- 74 mm
- Dimension - N inch
- 0.53 in
- Dimension - Pad Width inch
- 1.40 in
- Dimension - Stud Size fraction
- 1/2
- Dimension - Z inch
- 0.55 in
Dimension - B Length inch1.19 in
Dimension - Bolt Size fraction1/2
Dimension - Hole Size mm13 mm
Dimension - Length Overall inch2.93 in
Dimension - Outside Diameter inch0.95 in
Dimension - Strip Length inch1-1/4
Dimension - Stud Size inch1/2
Physical Attribute - Tongue AngleStraight
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Industry Standard(s)
- UL467
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
Standards - Industry Standards MetUL467
UL ListedYes
Conductor Related
- Conductor - Copper DLO Size Range
- N/A
- Conductor - Copper Str Navy Size Range
- 400 (127) Navy
- Conductor - Copper Str Size Range
- 400 kcmil
Conductor - Copper Str Navy Size400 (127) Navy
Conductor - Copper Str Size400 kcmil
Conductor - MaterialCopper
General
- Application
- For Code Conductor
- Connector Type
- Terminal
- Feature - Barrel Type
- Standard
- Physical Attribute - Number of Holes
- 1
- Plated
- Y
- Sub Brand
- HYLUG
- Type
- Standard Barrel, Tin Plated
Color CodeBlue
Die Index19
MaterialCopper
Physical Attribute - Tongue TypeStandard
Plating TypeTin - Electro Plated
Trade NameHYLUG™
UPC781810505700
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 1
