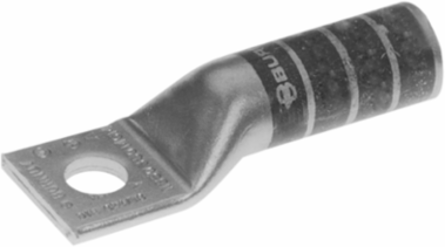

Burndy YA8CN Non-Insulated Copper Terminal, 1/2 Inch Stud, Tin Plated, 8 AWG, 1 Hole
- MPN: YA8CN
- UPC: 781810080221
- PPN: BUR-50251Y
CAD
$25.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Uninsulated Cu Tubing Compression Terminal, 1 Hole W/O InspWindow, #8 AWG - #6 Sol Code, 23 Navy, 1/2" Stud
Documentation & Downloads
Specifications
Dimensions
| Dimension - B Length inch | 0.81 in |
|---|---|
| Dimension - Bolt Size fraction | 1/2 |
| Dimension - Hole Size inch | 0.56 in |
| Dimension - L Length Overall mm | 59 mm |
| Dimension - N inch | 0.63 in |
| Dimension - Pad Width inch | 0.83 in |
| Dimension - Z inch | 0.64 in |
| Dimension - Bolt Hole Size inch | 0.52 in |
|---|---|
| Dimension - D inch | 1.27 in |
| Dimension - Hole Size mm | 14 mm |
| Dimension - Length Overall inch | 2.32 in |
| Dimension - Outside Diameter inch | 0.27 in |
| Dimension - Strip Length inch | 1-3/16 |
| Physical Attribute - Tongue Angle | Straight |
Certifications and Compliance
| Certification - CSA Approved | Yes |
|---|---|
| Certification - UL Recognized | No |
| Standards - RoHS Compliance Status | CM |
| Certification - ETL | No |
|---|---|
| Certification - cULus | No |
| UL Listed | Yes |
Conductor Related
| Conductor - Copper Solid Size | 6 AWG |
|---|---|
| Conductor - Copper Str Navy Size | 23 (7) Navy |
| Conductor - Copper Str Size | 8 AWG |
| Conductor - Material | Copper |
| Conductor - Copper Solid Size Range | 6 AWG |
|---|---|
| Conductor - Copper Str Navy Size Range | 23 (7) Navy |
| Conductor - Copper Str Size Range | 8 AWG |
General
| Color Code | Red |
|---|---|
| Die Index | 49 |
| Feature - Barrel Type | Long |
| Physical Attribute - Number of Holes | 1 |
| Plating Type | Tin Plated |
| Trade Name | HYLUG™ |
| UPC | 781810080221 |
| Connector Type | Terminal |
|---|---|
| Feature - Barrel Style | Chamfered |
| Material | Copper |
| Plated | Y |
| Temperature Rating | 194 |
| Type | Long Barrel, Tin Plated |
| UPC 12 Digit | 7818100802211 |
Electrical Ratings
| Rating - KVA | 35 kV |
|---|---|
| Voltage - Maximum | 35000 |
| Rating - Minimum Voltage | 600 |
|---|
Logistics
| Minimum Pack Quantity | 50 |
|---|
